Cable Pusher M2700 XL

SKU: ML-M2700
E-number:

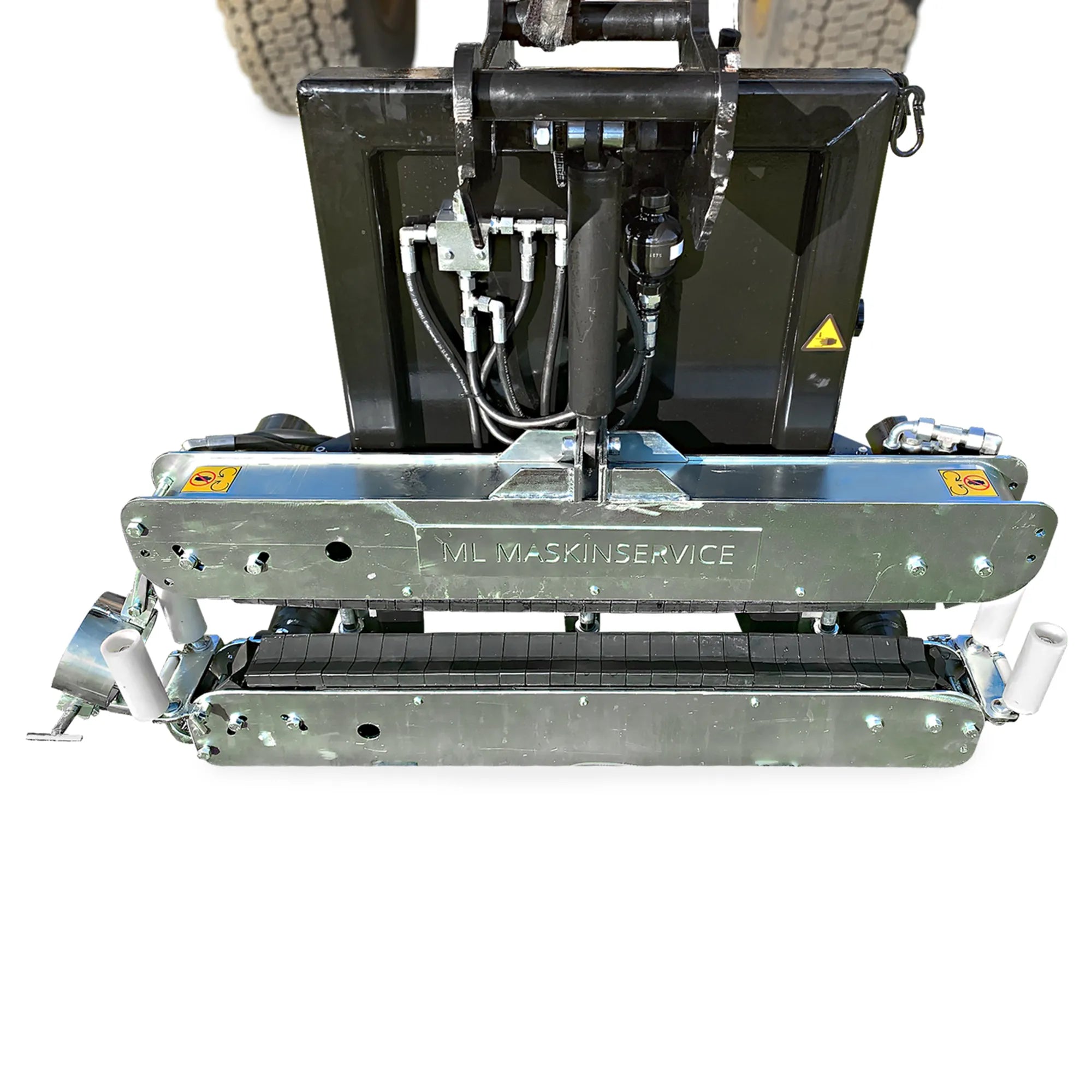

This hydraulic cable feeder is an upgraded and larger version of the M900+, designed for efficient installation of heavy power cables in demanding environments. The machine handles cables up to Ø140 mm and delivers a maximum pushing force of up to 2700 kp, making it suitable for both medium‑ and high‑voltage cable installations.
The cable feeder is mounted directly to the excavator attachment and connected to the machine’s hydraulic system. All functions are controlled from the cab via an integrated touchscreen, giving the operator full control of the feeding process as well as the ability to log and document installation data. This enhances operational accuracy, safety, and traceability.
The feeding belts are engineered to provide maximum grip while remaining extremely gentle on the cable. The automatically regulated clamping force rarely exceeds approximately 7 kg/cm³, despite the high available pushing force. The belts surround the cable and create a stable four‑point grip that centers the cable and minimizes the risk of damage to the outer sheath. Both belts are hydraulically driven and allow stepless adjustment of speed and feeding force.
The cable feeder is available with multiple attachment options – S30, S40, S45, S50, and S60 – and is recommended for excavators up to 10 tonnes.

Key Benefits
  • Handles cables up to Ø140 mm
  • Maximum pushing force up to 2700 kp
  • Automatically regulated clamping force for gentle cable handling
  • Touchscreen operation and logging directly from the cab
  • Compatible with multiple excavator attachment standards

Measurements and weight attributes

Width (mm):

Depth (mm):

Height (mm):

Weight (kg): 390.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 28

Cabler diameter max Ø (mm): 140

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 2700.0

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass:

Tullstat. nr:

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans:

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt:

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor: Hydraulisk

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min):

Viskositet (cP):

Additionals

D700

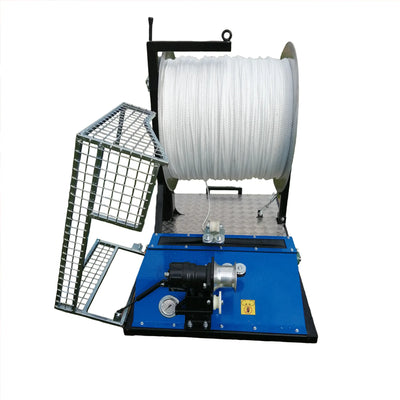

Support Winch ML D700 2000m
