Isulator Mounted Angle Roller 6911

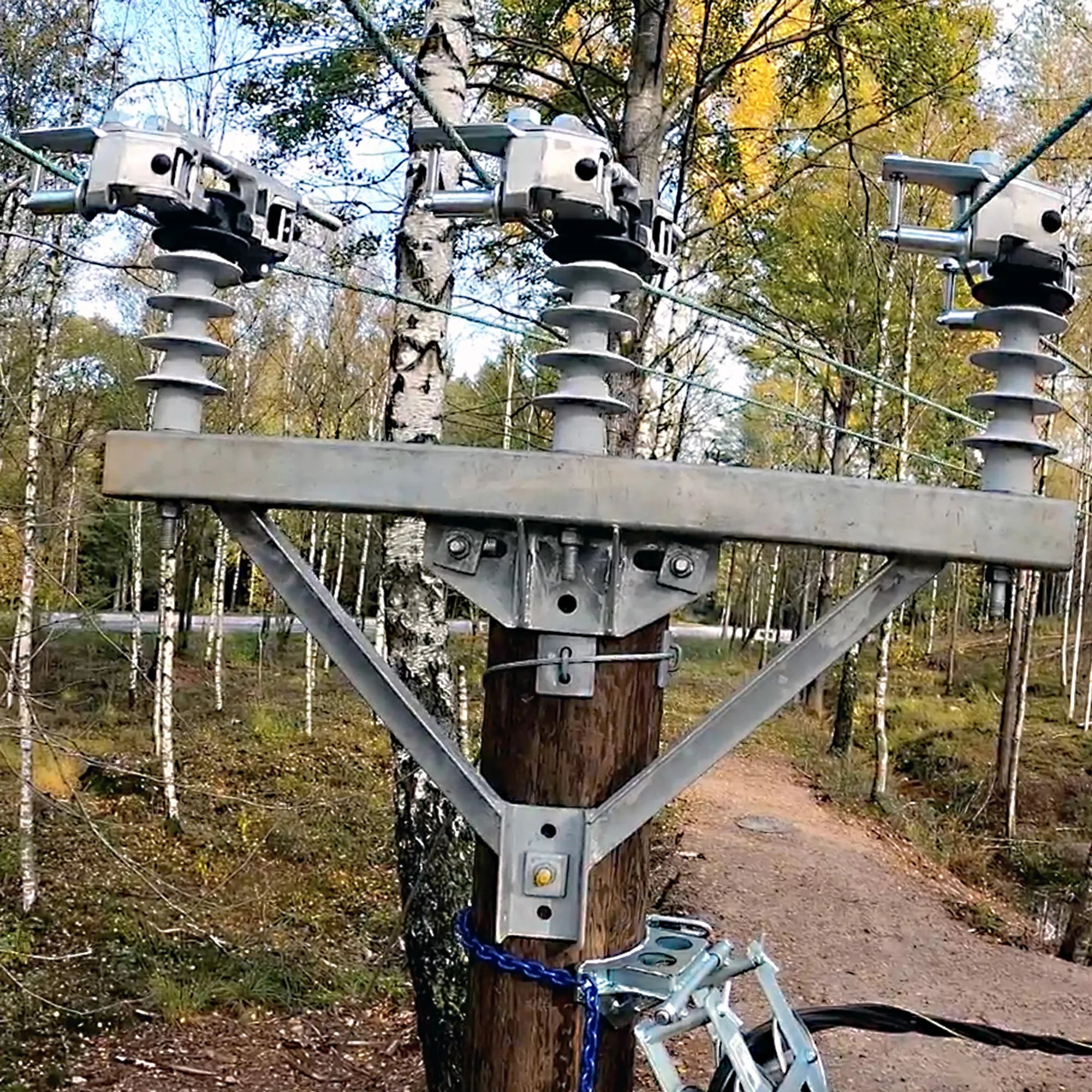

The roller is securely mounted by bolting it directly onto the neck of the insulator, providing a fixed and reliable attachment throughout the pulling operation. This mounting method ensures precise positioning and high stability, even under load. The angle configuration allows smooth line movement through the directional change while reducing mechanical stress on both the conductor and the insulator. The simple and robust design makes the roller easy to install and safe to work with for the installer.
The Angle Line Roller is intended for professional use in overhead line construction, maintenance, and power distribution projects. For full functionality, installation method, and application details, please refer to the product video.
Key Benefits:
- Angle line roller designed for mounting on insulators
- Bolted directly to the insulator neck for secure attachment
- Safe and easy to use during overhead line pulling
- Provides controlled guidance at directional changes
- Suitable for professional overhead line installation work
Measurements and weight attributes
Width (mm):
Depth (mm):
Height (mm):
Weight (kg): 6.1
Pull line diameter Ø (mm):
Pull line längd (m):
Break point (kg):
Break load (kg):
Grip length (mm):
Cable area max (mm2):
Cable diameter min Ø (mm):
Cabler diameter max Ø (mm): 45
Max diameter Ø (mm):
Max load (kg): 500
Stored measurement (mm):
Drum diameter min internal Ø (mm):
Drum diameter max internal Ø (mm):
Drum diameter max external Ø (mm):
Service weight (kg):
Drum width max (mm):
Drum diameter min Ø (mm):
Drum diameter max Ø (mm):
Drum center hole min (mm):
Drum center hole max (mm):
Drum size Ø:
Total weight (kg):
Total length (mm):
Pressure max (kg):
Outer diameter ring max Ø (mm):
Product attributes
ETIM-class: EC000322
Tullstat. nr: 84283990
