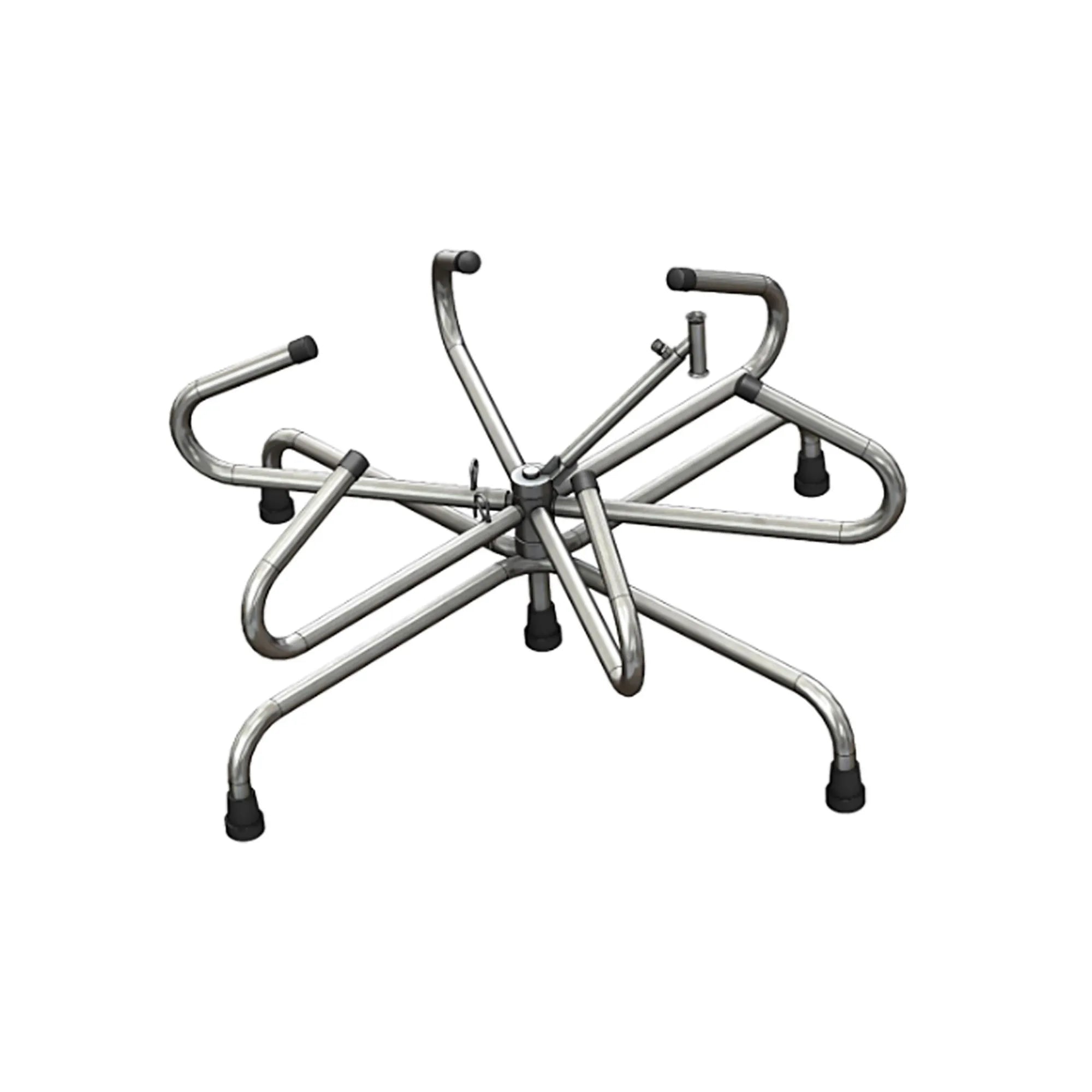

Staywire Frame

SKU: 7549-0001
E-number:
The Staywire Frame is designed for safe, controlled, and efficient dispensing of stay wire directly from the reel. It allows operators to handle heavy wire coils in a stable setup, reducing manual effort and improving safety during installation work.
The frame features two removable arms, enabling a complete reel of stay wire to be easily loaded into position. Once the reel is in place, the arms are secured to fully support the coil before removing the retaining straps. The wire is then guided through an integrated feed eye tube, ensuring controlled payout and minimizing tangling during pulling and cutting operations.
Built from zinc-plated steel for corrosion resistance, the unit runs on sealed ball bearings to ensure smooth rotation under load and long service life. Rubber feet provide additional stability on uneven site surfaces, making it suitable for outdoor construction environments and utility work.

Key Benefits:
  • Controlled and safe dispensing of stay wire reels
  • Removable arms for quick and easy reel loading
  • Sealed bearings for smooth, low-friction operation
  • Durable zinc-plated steel construction for outdoor use
  • Stable base with rubber feet for secure positioning
Specifications:
  • Max reel diameter: 880 mm
  • Feed tube internal diameter: 16 mm (for wire up to 10 mm O.D.)
  • Max reel weight: 350 kg
  • Assembly weight: 6.3 kg

Measurements and weight attributes

Width (mm):

Depth (mm):

Height (mm):

Weight (kg): 6.3

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm): 10

Max load (kg): 350

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm): 880
