PowerFlow RAPID
PowerFlow RAPID
Fremco

Powerflow Rapid

SKU: 101-40001
E-number:

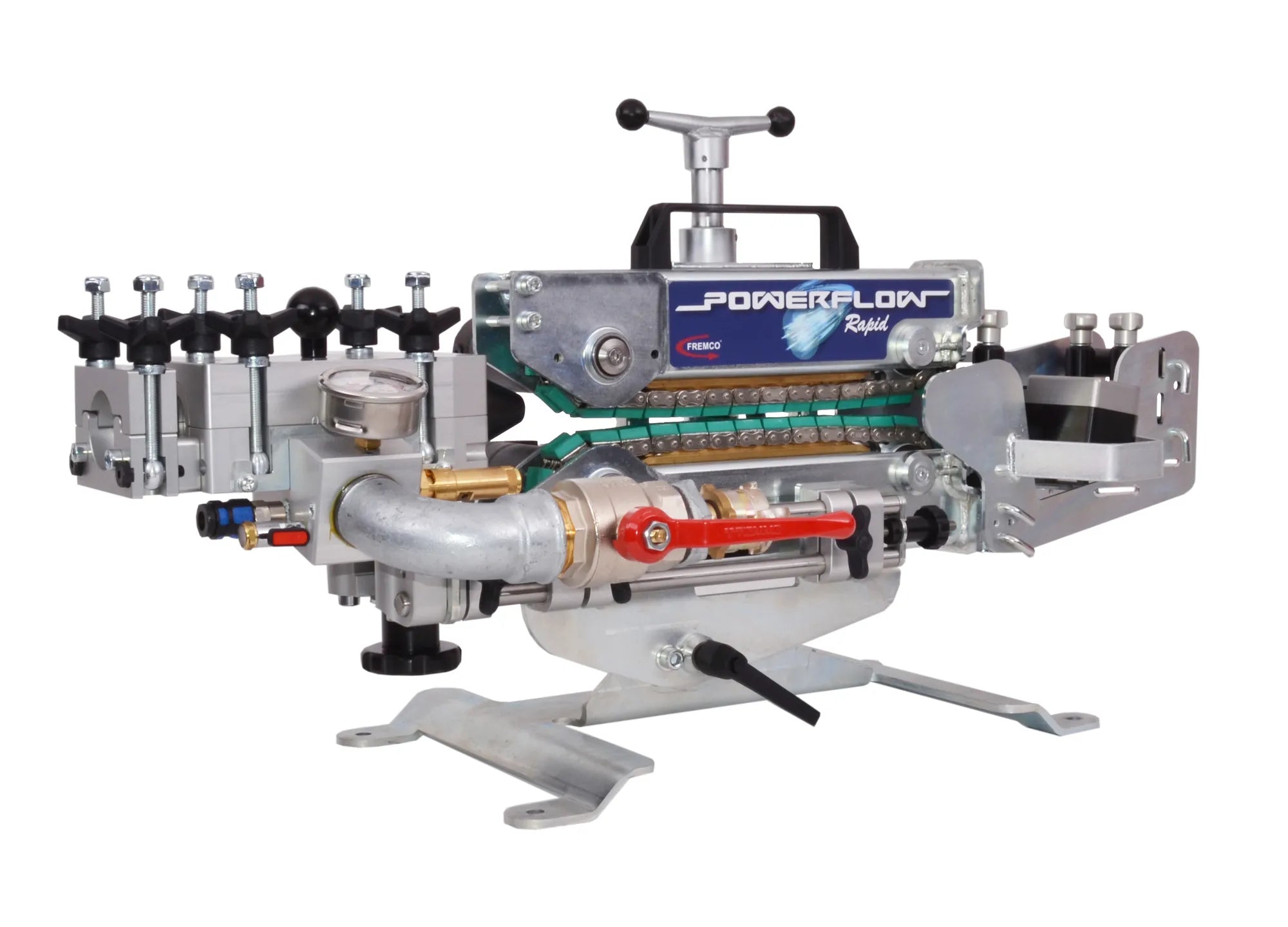

PowerFlow RAPID – Flexible and Time‑Saving Fiber and Cable Blowing Machine

PowerFlow RAPID is a user‑friendly fiber and cable blowing machine designed for efficient installation in duct systems. The machine is developed to reduce setup time and simplify on‑site work through tool‑free handling and fast adaptation to varying fiber, cable, and duct dimensions. It is suitable for both fiber network expansion and installation of larger cables over long distances.
The time‑saving design is based on the RAPID flex block, which allows quick and secure mounting of both duct and cable without the use of tools. This enables the installer to easily switch between different fiber, cable, and duct sizes, increasing productivity and minimizing downtime between jobs.
The RAPID flex block is adjustable in both height and length to accommodate the wide variation in cable and duct dimensions encountered in real‑world installations. All adjustments are made easily by hand, ensuring optimal alignment and contact between cable and duct. This results in faster installation, improved control, and reduced risk of installation issues.
PowerFlow RAPID supports cable blowing using either air or water. Water‑assisted floating enables optimal installation results, particularly when installing larger cables or blowing over long distances. This flexibility makes the machine suitable for a wide range of installation conditions and project requirements.

Key Benefits

  • Tool‑free handling with RAPID flex block
  • Fast adaptation to different fiber, cable, and duct sizes
  • Adjustable flex block in height and length for optimal alignment
  • Supports both air blowing and water‑assisted floating
  • Efficient solution for long distances and larger cables

Measurements and weight attributes

Width (mm): 400

Depth (mm): 500

Height (mm): 950

Weight (kg): 45.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 5,5

Cabler diameter max Ø (mm): 25

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 125.0

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC002413

Tullstat. nr: 84798900

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans: 5000

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt: 10-63

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor:

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min): 80.0

Viskositet (cP):
