MultiFlow RAPID_single cable
MultiFlow RAPID_single cable
Fremco

Multiflow Rapid

SKU: 101-40021
E-number:

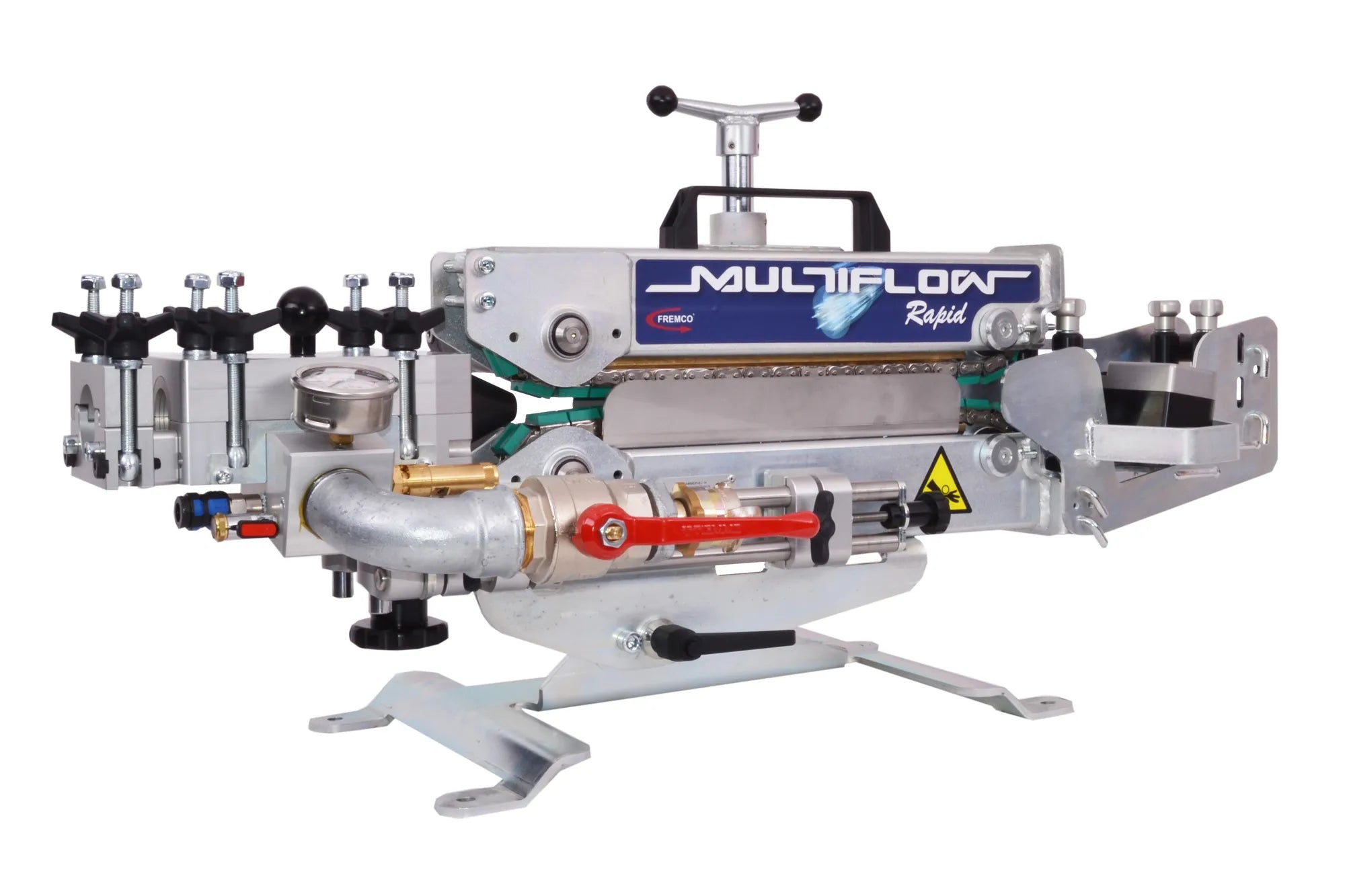

MultiFlow RAPID – Flexible Blowing Machine for Cable Installation and Relining

MultiFlow RAPID is a highly versatile blowing machine designed for both cable installation and relining applications in duct and micro‑duct systems. The machine can be configured for a wide range of duct and micro‑duct combinations, making it suitable for fiber network expansion, rehabilitation projects, and complex installation environments where flexibility is essential.
Thanks to the RAPID system, MultiFlow RAPID offers completely tool‑free installation and configuration. The machine can be quickly adapted to different fiber, cable, and duct sizes directly on site, significantly reducing setup time and increasing daily productivity. This makes MultiFlow RAPID an efficient solution for installers working on multiple jobs with varying installation requirements.
The RAPID flex block is adjustable in both height and length, allowing precise positioning of the cable and duct in relation to the drive chains. Correct alignment ensures secure handling of both fiber and duct during the blowing process. All adjustments are performed easily by hand, without tools, ensuring fast and accurate setup while minimizing the risk of installation errors.
MultiFlow RAPID supports cable installation using either air or water. Water‑assisted floating enables optimal results, particularly when installing larger cables or blowing long distances. This dual‑method capability gives installers maximum flexibility to choose the most suitable installation technique based on cable size, duct conditions, and project requirements.

Key Benefits

  • Configurable for both cable installation and relining applications
  • Tool‑free installation and adjustment with RAPID system
  • Adjustable flex block in height and length for optimal cable and duct alignment
  • Secure handling of fiber and duct via correct positioning against drive chains
  • Supports both air blowing and water‑assisted floating
  • Suitable for a wide range of duct and micro‑duct combinations

Measurements and weight attributes

Width (mm): 400

Depth (mm): 500

Height (mm): 1050

Weight (kg): 51.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 5,5

Cabler diameter max Ø (mm): 32

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 200.0

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC002413

Tullstat. nr: 84798900

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans: 5000

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt: 10-63

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor:

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min): 80.0

Viskositet (cP):
