MICROFLOW Touch1200

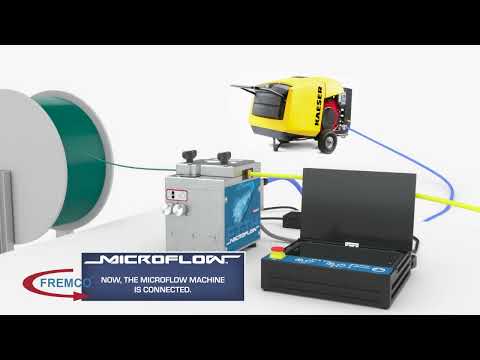

Video
MICROFLOW Touch1200
Video
Fremco

Microflow Touch

SKU: 101-10051
E-number:
MicroFlow SMART – Fully Automatic Fiber Blowing Machine
MicroFlow SMART is a compact, fully automatic fiber blowing machine designed for safe and efficient installation of fiber optic cables in micro‑duct systems. The machine is developed to simplify fiber blowing operations while maintaining full control and protection of the fiber throughout the installation process. Its intuitive control system and tool‑free configuration make it suitable for both experienced installers and new operators.
The machine is equipped with an intuitive display featuring a guided, step‑by‑step setup process. Clear on‑screen instructions allow fast configuration and operation, significantly reducing setup time and the risk of operator error. This makes MicroFlow SMART one of the most user‑friendly fiber blowing machines on the market, enabling rapid start‑up even for first‑time users.
Thanks to the RAPID system, MicroFlow SMART can be configured entirely without tools. The machine can be operated directly from its transport case, allowing quick deployment on site and efficient handling of multiple installations during the same working day. This tool‑free design minimizes downtime and improves overall productivity.
MicroFlow SMART operates in a fully automatic fiber blowing mode that continuously protects the fiber cable during installation. The integrated Fremco protection technology monitors fiber resistance in real time. If increased resistance is detected, the machine automatically stops and attempts to reverse up to three times before manual intervention is required. This function significantly reduces the risk of fiber damage, costly rework, and unplanned downtime.

Key Benefits
  • Intuitive display with guided step‑by‑step configuration
  • Fully automatic fiber blowing for consistent and safe installation
  • Tool‑free RAPID system for fast setup and job changes
  • Advanced fiber protection with automatic stop and reverse function
  • Operable directly from the transport case for rapid site deploym

Measurements and weight attributes

Width (mm): 150/150 mm

Depth (mm): 250/200 mm

Height (mm): 220/80mm

Weight (kg): 10.7

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 0,8

Cabler diameter max Ø (mm): 6,5

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm): 4

Drum diameter max internal Ø (mm): 16

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 12.0

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC002413

Tullstat. nr: 84798900

Working temperature range:

Density:

Diameter (mm):

Distanse: 2500 m

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct: 4-16 mm

Flow max (l/min):

Frequency (kHz):

Color:

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar): 16

Pressure speed max (m/min): 75.0

Viscosity (cP):
