Microflow1200
Microflow1200
Fremco

Microflow Smart+

SKU: 101-250326002
E-number:

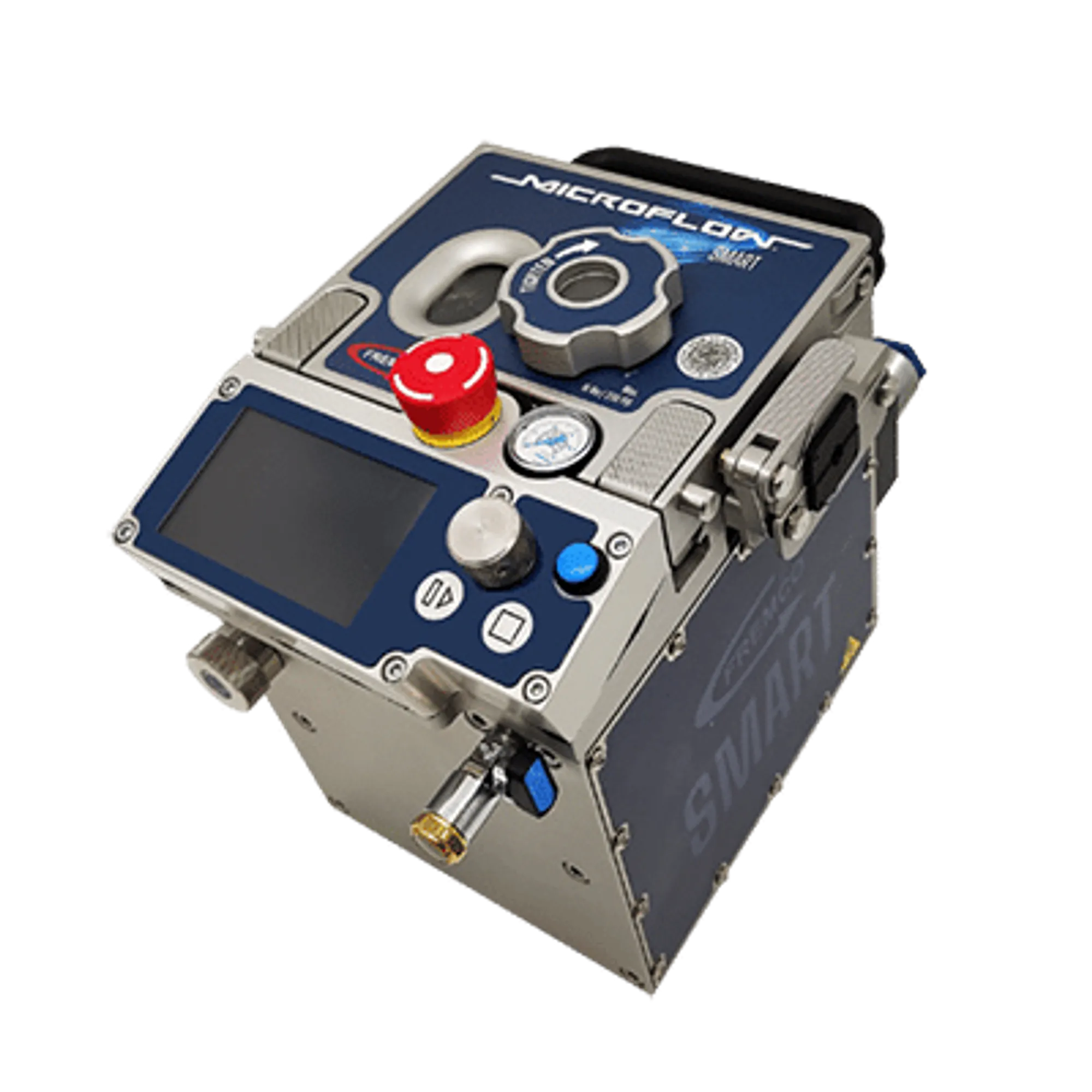

This automatic fiber blowing machine is designed for efficient installation of FTTH fibers and micro cables in ducts ranging from 5 to 22 mm. It supports cable diameters from 0.8 up to 8 mm, making it suitable for residential access networks as well as small‑scale backbone deployments. With a preparation time of approximately 5 minutes and blowing distances up to 2,500 meters, the unit is optimized for fast deployment and high productivity in field conditions.
The machine features an intuitive, guided control system with a step‑by‑step display interface that simplifies setup and operation for both new and experienced technicians. Tool‑free configuration enables rapid adjustments between jobs without additional equipment, reducing downtime and improving daily output. The system can be operated directly from its transport box, allowing for quick job startup and minimizing handling on site.
Equipped with automatic blowing functionality, the machine ensures consistent performance while protecting the fiber cable throughout the installation process. Integrated Fremco protection technology continuously monitors resistance and automatically stops the operation if critical load is detected. The system will attempt to reverse the cable up to three times before requiring operator intervention, minimizing the risk of cable damage and costly installation errors.

Key Benefits:
– Supports fiber cables from 0.8–8 mm and ducts from 5–22 mm
– Tool‑free configuration for fast setup and multiple daily installations
– Automatic blowing mode ensures safe and consistent operation
– Integrated protection system with automatic stop and reverse function
– Operable directly from transport box for rapid deployment

Measurements and weight attributes

Width (mm): 204

Depth (mm): 254

Height (mm): 286

Weight (kg): 21.1

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 0,8

Cabler diameter max Ø (mm): 8

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 10.0

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC002413

Tullstat. nr: 84798900

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct: 5-22

Flow max (l/min):  500

Frequency (kHz):

Color:

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar): 16

Pressure speed max (m/min): 80.0

Viscosity (cP):
