Line Roller UK Angles

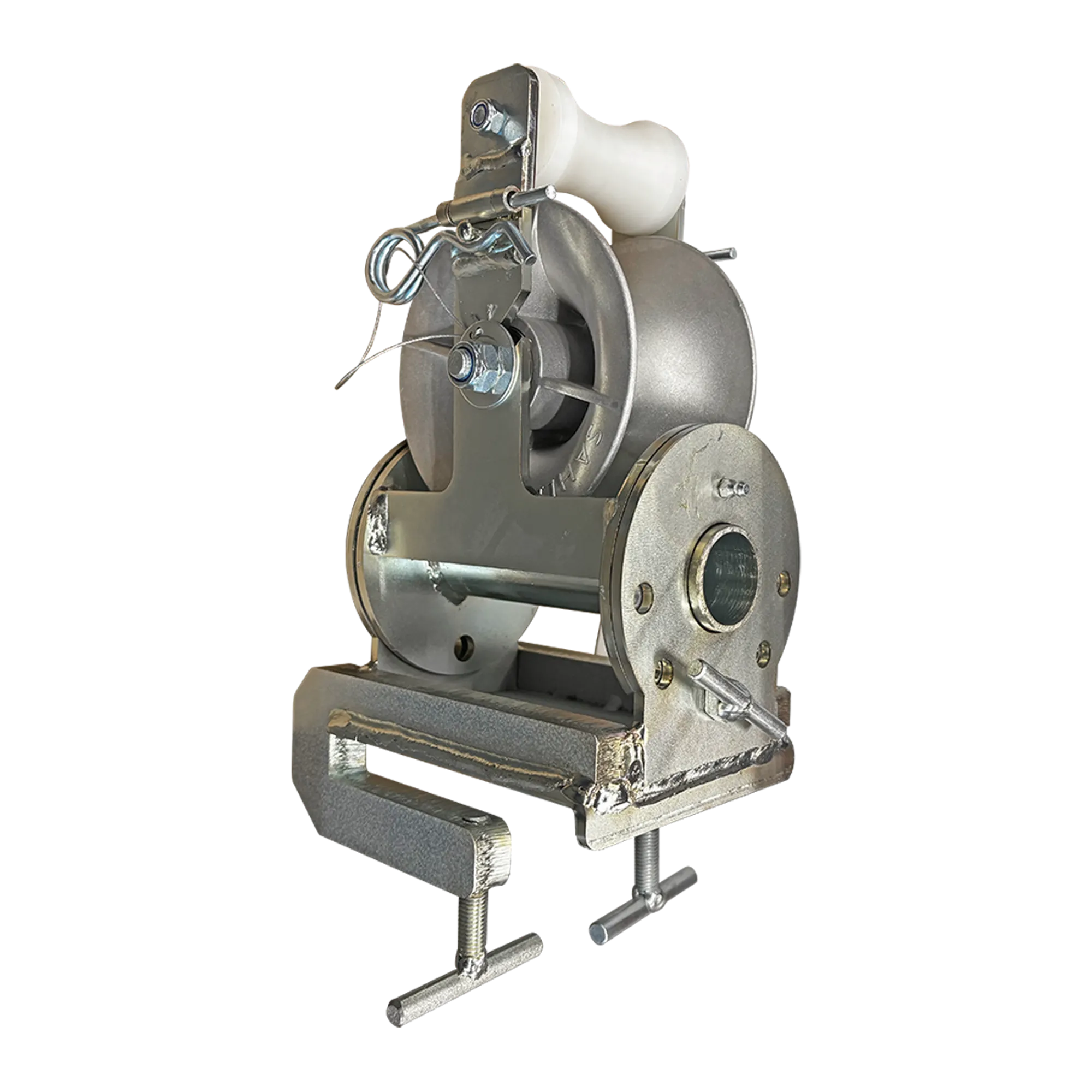

Line Roller – Model UK Corner, up to Ø50 mm, max load 500 kg
The Line Roller Model UK Corner is designed for safe and controlled guidance of cables or pulling ropes at directional changes during cable installation. It is used in trenches, at duct exits, manholes, and surface installations where the cable must be routed around corners without excessive friction or side loading. The roller is suitable for LV, MV, and selected HV cable installations.
This corner version supports cable and rope diameters up to 50 mm and is rated for a maximum working load of 500 kg. The heavy‑duty steel frame ensures stability in demanding site conditions, while low‑friction bearing‑mounted rollers allow smooth cable movement through the angle. The design reduces pulling force, protects the cable sheath, and improves overall installation safety.
The Line Roller can be used individually or combined with straight line rollers to form a complete and flexible cable routing system.
Key Benefits:
– Corner guidance for cable and pulling rope
– Suitable for diameters up to 50 mm
– Maximum working load: 500 kg
– Heavy‑duty steel construction
– Low‑friction rollers reduce cable stress
Measurements and weight attributes
Width (mm): 110
Depth (mm): 185
Height (mm): 260
Weight (kg): 9.0
Pull line diameter Ø (mm):
Pull line längd (m):
Break point (kg):
Break load (kg):
Grip length (mm):
Cable area max (mm2):
Cable diameter min Ø (mm):
Cabler diameter max Ø (mm): 50
Max diameter Ø (mm):
Max load (kg): 500
Stored measurement (mm):
Drum diameter min internal Ø (mm):
Drum diameter max internal Ø (mm):
Drum diameter max external Ø (mm):
Service weight (kg):
Drum width max (mm):
Drum diameter min Ø (mm):
Drum diameter max Ø (mm):
Drum center hole min (mm):
Drum center hole max (mm):
Drum size Ø:
Total weight (kg):
Total length (mm):
Pressure max (kg):
Outer diameter ring max Ø (mm):
