Izumi

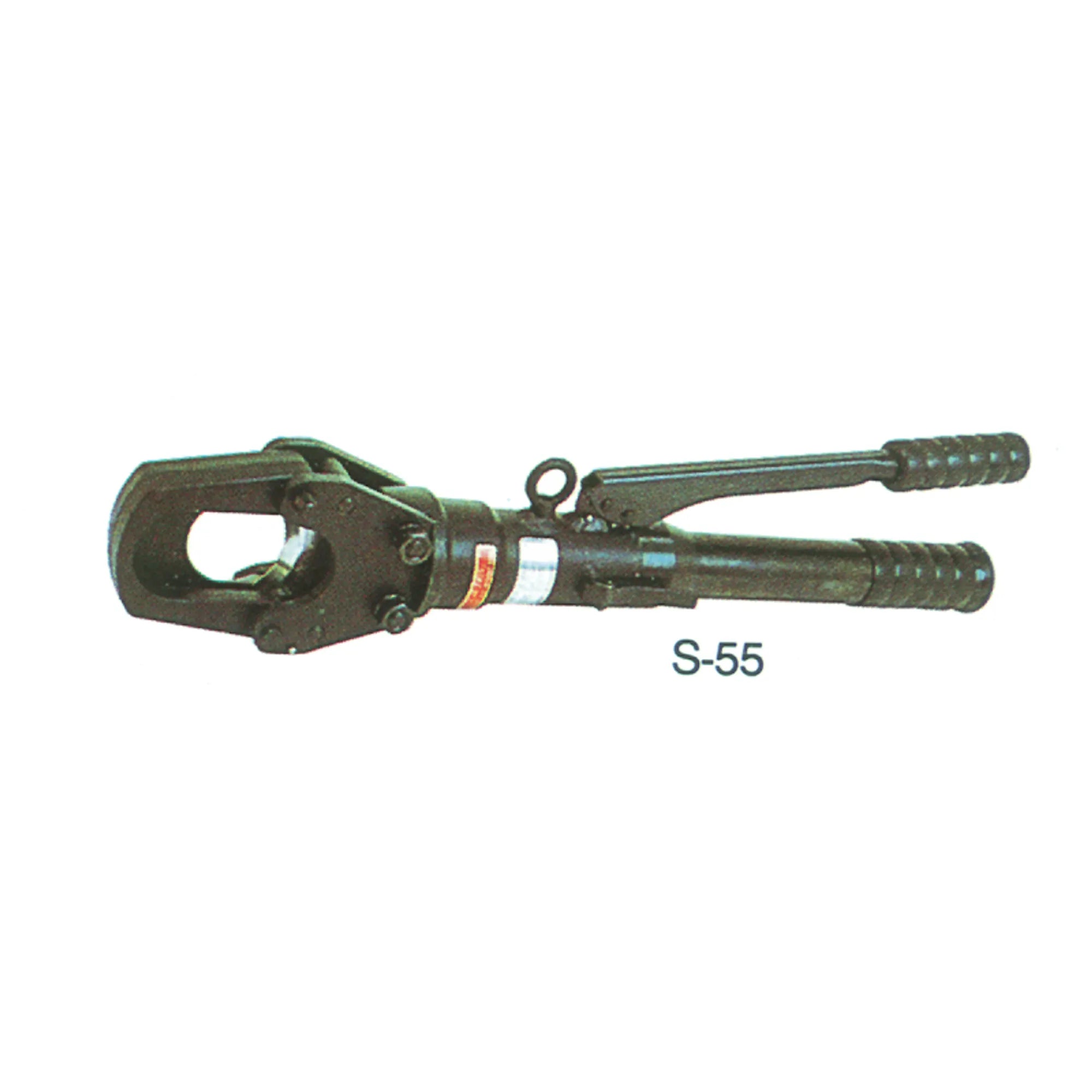

Cable Cutter S-55A Izumi

SKU: 7300-1055
E-number:
The Izumi S‑55A is a portable hydraulic cutter designed for demanding cutting tasks involving wire ropes, guy wires, and stranded aluminium and copper conductors. It is well suited for use in power line construction, utility work, and industrial environments where controlled, high-force cutting is required. The compact yet robust design makes it practical for field operations, including work in substations and along transmission lines.
The S‑55A features a guillotine-type cutting mechanism that ensures clean cuts with reduced risk of jamming compared to traditional shear-type cutters. The 180° rotating head allows flexible positioning for improved access and ergonomics, while the lock pin type cutter head provides secure operation under high loads. A flip-top latch enables fast and easy insertion of materials, improving productivity during repetitive cutting tasks.
With an output force of approximately 118 kN (converted from 12 metric tons) and a two-stage hydraulic pumping system, the tool delivers strong and controlled cutting performance with moderate manual effort. The integrated hydraulic system requires no external setup, and replaceable blades extend service life.

Note: Cutting of piano wire and hardened materials is prohibited.

Extra Technical Data:
Output force: ~118 kN
Reservoir capacity: 165 cc
Max handle load: 30
Pumping system: 1/2-stage
Rotating head: 180°
Cutter head: Lock pin type

Cutting Capacity:
Wire rope (6×7): 25 mm
Wire rope (6×12 / 6×19): 30 mm
Soft steel bar: 22 mm
Reinforcing rod: 19 mm
Cu / Al strands: 50 mm
ACSR: 50 mm
Guy wire (1×7): 15 mm
Guy wire (1×19): 20 mm

Key Benefits:
High cutting force (~118 kN) for wire, strands, and ACSR
Guillotine cutting reduces deformation and jamming
180° rotating head for flexible working positions
Lock pin head for secure and stable operation
Replaceable blades and no setup required

Measurements and weight attributes

Width (mm):

Depth (mm): 610

Height (mm):

Weight (kg): 7.9

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm): 55

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC000157

Tullstat. nr: 8467 89 00

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:  Svart

Thread:

Grading:

Force (kN): 118

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP):
