Kaeser

i.Comp 3 Mobil

SKU: KA-1000
E-number:

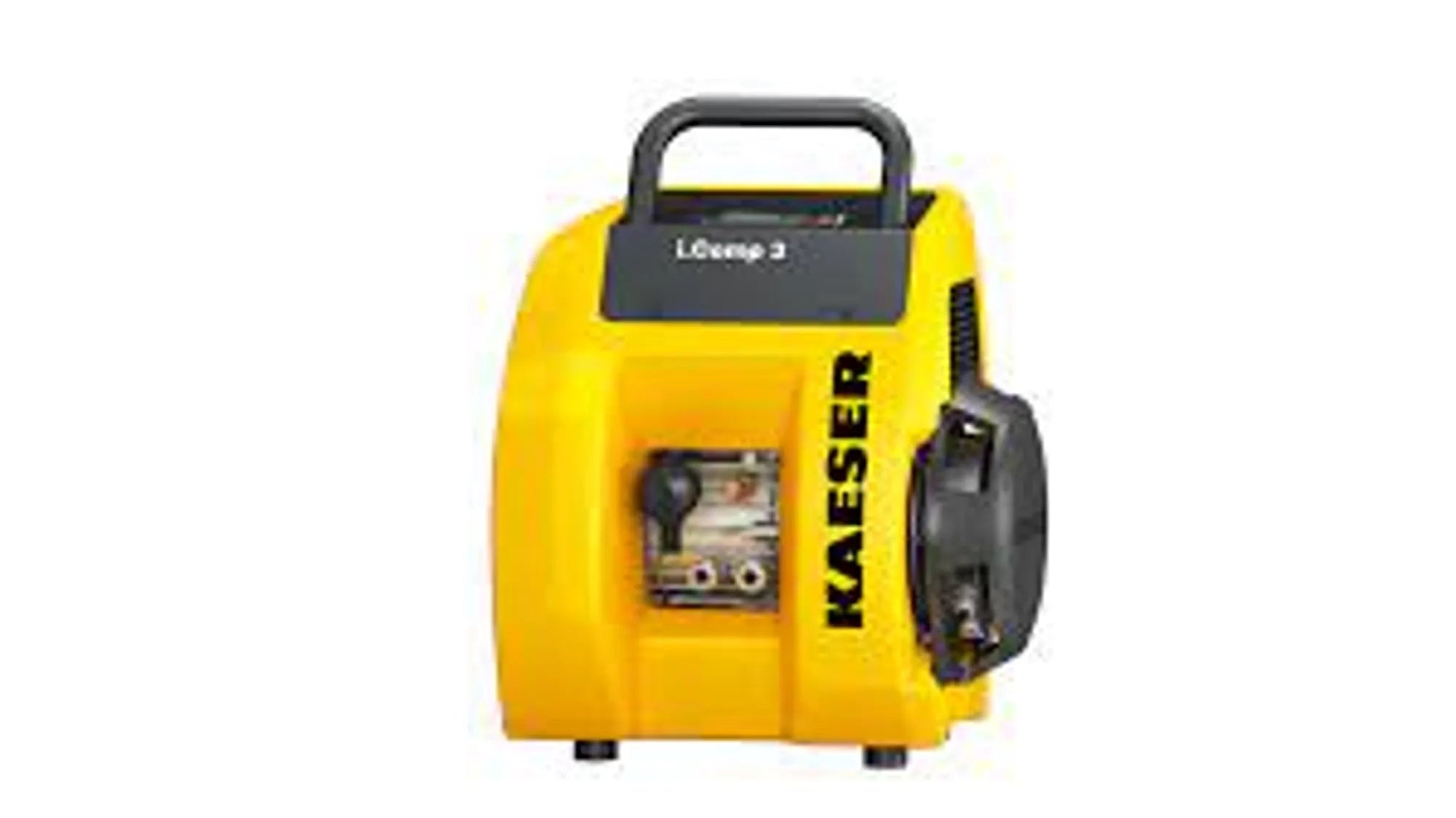

Kaeser i.Comp 3 – Mobile Oil‑Free Compressor for Fiber Blowing Applications

The Kaeser i.Comp 3 is a compact, electrically driven and oil‑free piston compressor designed for flexible use in fiber blowing and light compressed‑air applications. Thanks to its low weight and space‑saving design, the unit is easy to transport and well suited for both outdoor and indoor work environments. The absence of oil and the electrically powered drive make it particularly suitable for use in confined spaces and buildings.
The compressor delivers constant pressure up to 11 bar without the need for a traditional air receiver. This is achieved through a speed‑controlled motor that adapts output precisely to demand. The stable pressure profile ensures reliable starts and consistent performance, even when blowing fiber cables over distances of up to 150 meters. The i.Comp 3 works very well with common fiber blowing machines for microduct installations, typically 7/3.5 mm or 5/3.5 mm, and can also be used in ducts with an inner diameter of Ø 10 mm, depending on installation conditions.
Operation is handled via the i.Comp Control interface, which allows precise pressure adjustment using intuitive arrow keys. Integrated service functions provide quick access to system status and operational checks. The oil‑free compression process eliminates oil level checks and oil changes, reducing maintenance requirements. Condensate generated during operation is handled automatically through an innovative evaporation system, leaving no residual condensate to manage. For site mobility, the compressor is equipped with robust, terrain‑capable wheels and can be transported horizontally to save space.

Key Benefits:
  • Oil‑free compressed air – no oil changes, no contamination
  • Constant pressure up to 11 bar without air receiver
  • Well suited for fiber blowing in microducts (7/3.5, 5/3.5 mm)
  • Compact, lightweight and easy to transport
  • Suitable for indoor use with automatic condensate management

Measurements and weight attributes

Width (mm): 440

Depth (mm): 1050

Height (mm): 570

Weight (kg): 29.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC000079

Tullstat. nr: 84148022

Working temperature range: 3/35

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:  Gul

Thread:

Grading:

Force (kN):

Sound level dB (A): 79

Air flow (l/min): 160

Air pressure:

Material:

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar): 16

Pressure speed max (m/min):

Viscosity (cP):
