Bagela

Cable Winch RKW 5010 ¬oo 1250m 18kW

SKU: B-002-001-02V
E-number:
The RKW 5010 is a powerful and heavy‑duty cable winch designed for demanding pulling applications such as relining and cable installation in energy, utility, and infrastructure projects. As standard, the winch is supplied with 1,250 m of Ø12 mm steel wire rope, with wire length adjustable on request up to a maximum of 1,800 m. The design is optimized for long pulling distances and high loads where operational reliability and precise force control are essential.

The winch is equipped with an automatic “hold‑on” system (static pull system), which locks the wire rope when winching stops. This prevents the load from running back and ensures that the pulling force is maintained without manual securing. This function is essential for relining operations and provides a significant advantage during cable pulling, especially when used in combination with a cable feeder where smooth and controlled pulling is critical to protect the cable.

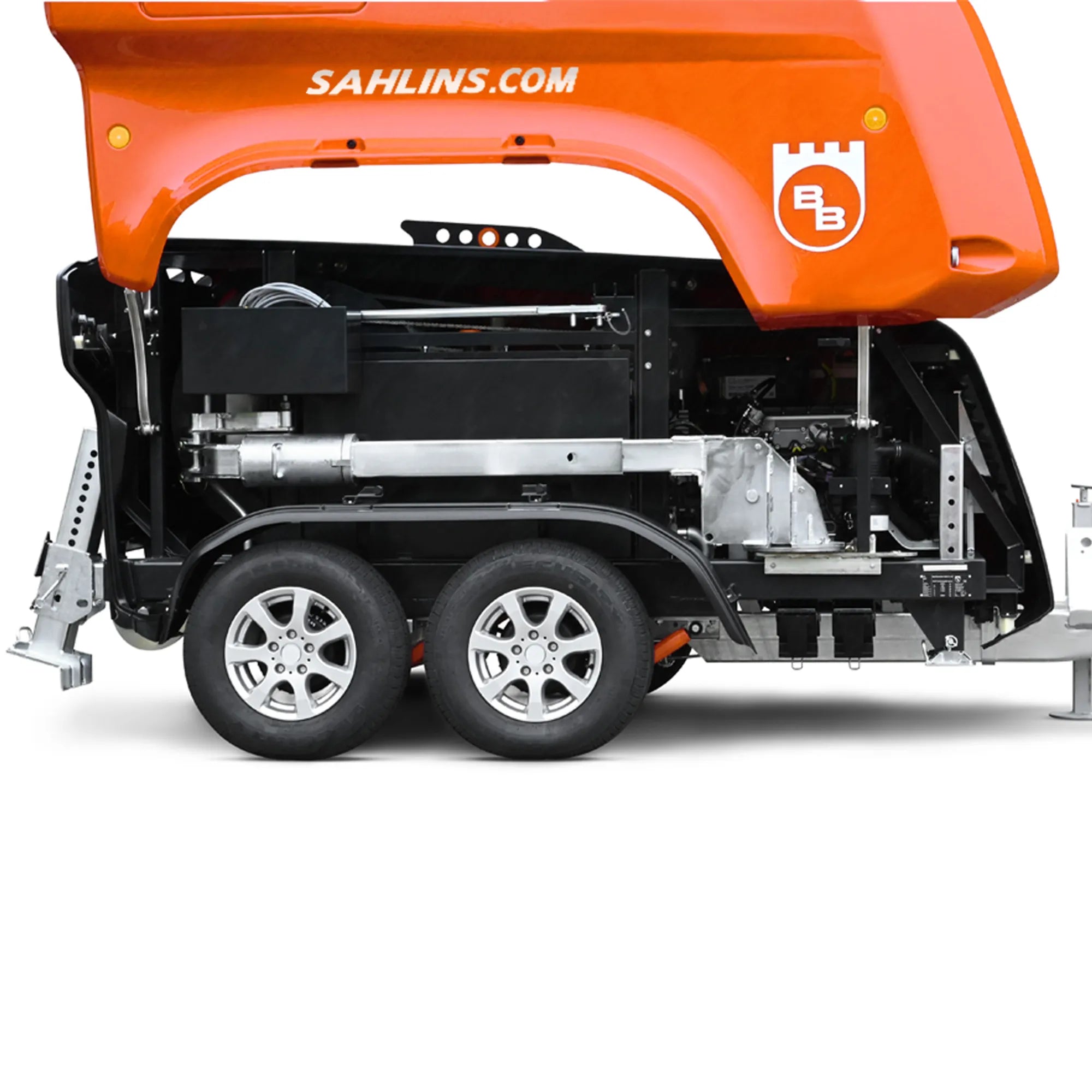

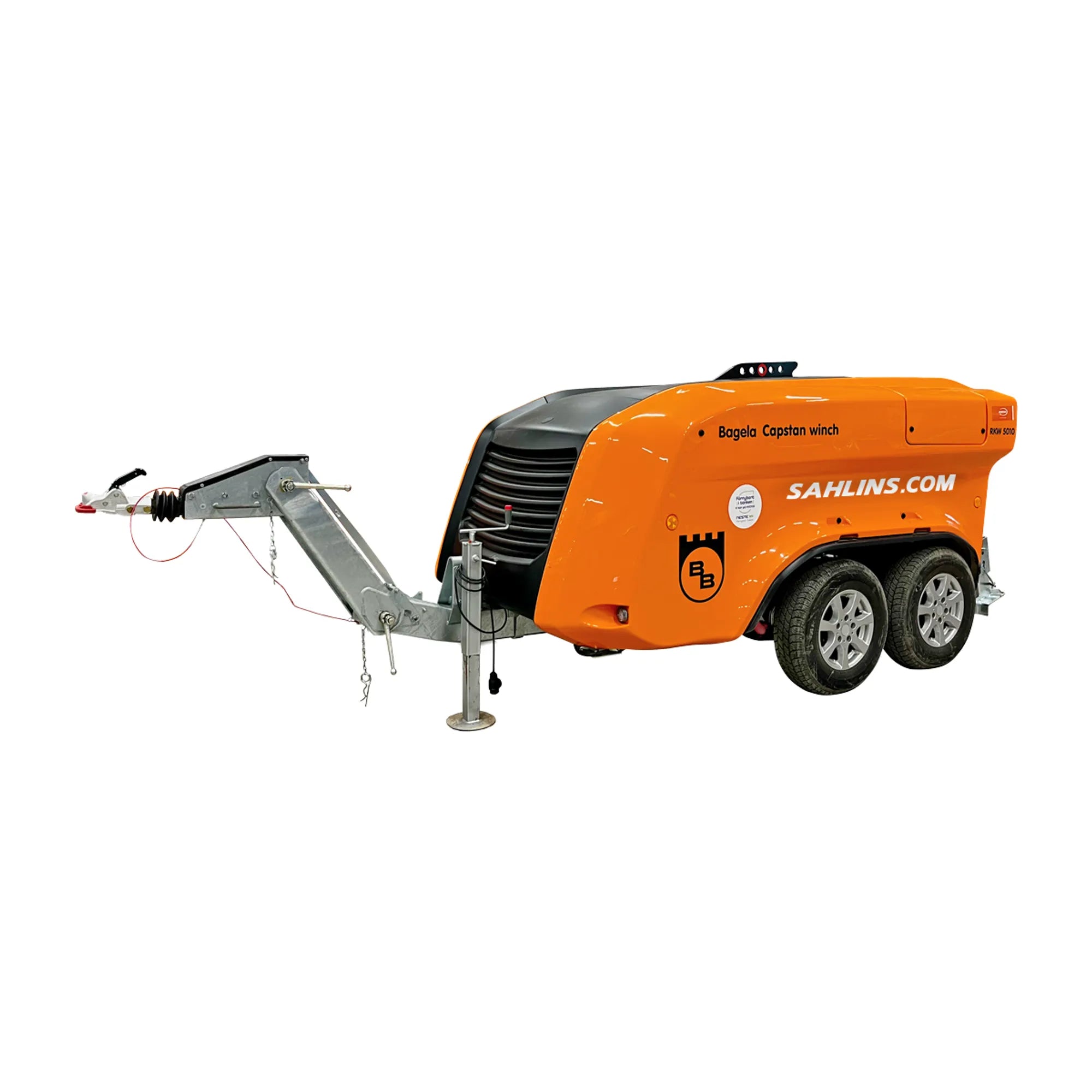

The RKW 5010 is supplied as a complete winch unit mounted on a bogie trailer with swan‑neck drawbar, suitable for mobile site use and road transport. It is powered by a diesel engine with hydraulic drive system and features two individually driven, grooved capstan heads as well as a storage drum. An advanced data logging system with touch screen allows digital recording of pulling force, adjustable pulling force limitation, speed, distance (odometer), operating hours, and position data via GPS. The system also includes WiFi and USB connectivity for data transfer and documentation.

Standard Design

Winch Aggregate

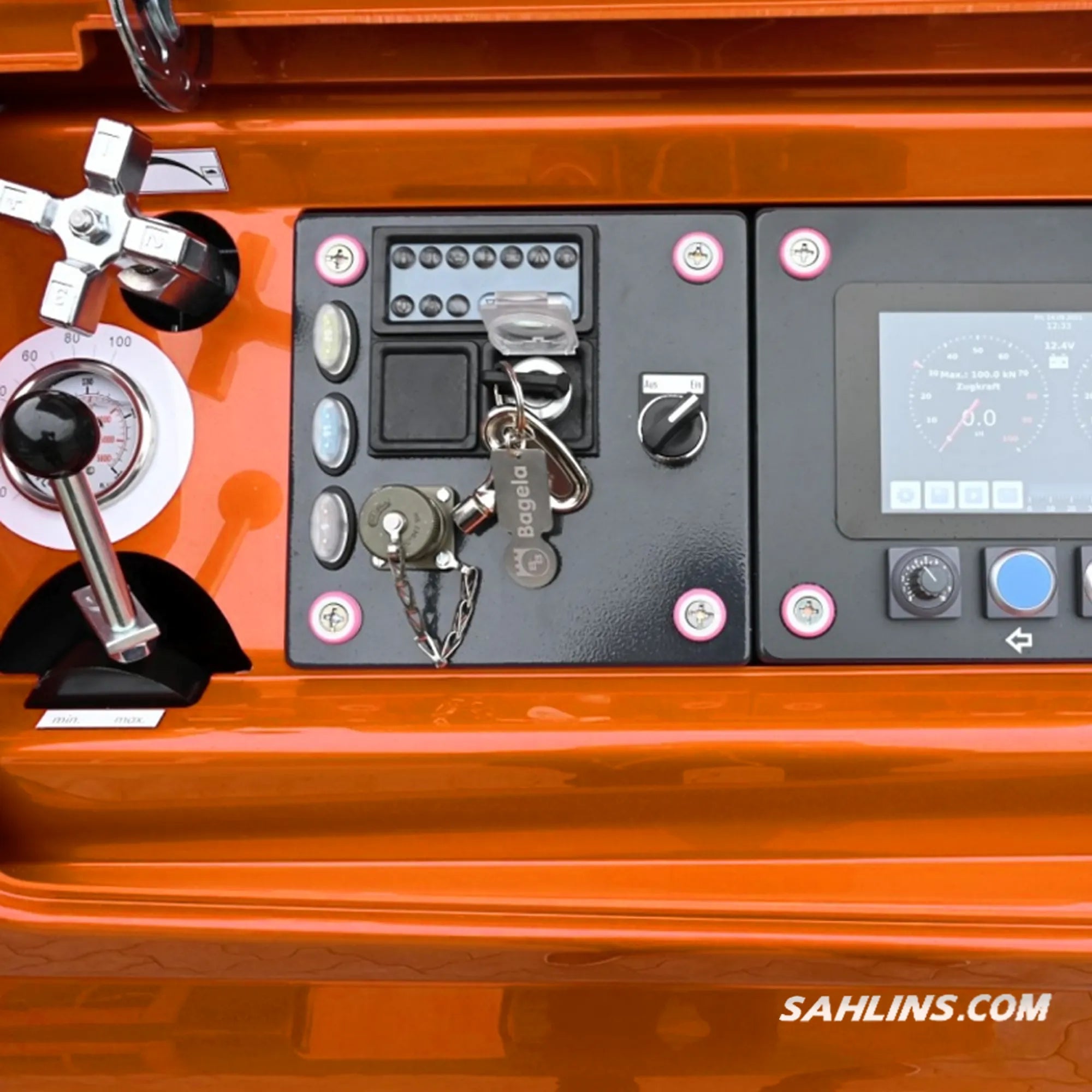

  • Data logging system with touch screen
  • Digital recording of pulling force
  • Adjustable pulling force limiter
  • Odometer with progress bar
  • Speed indicator
  • WiFi, USB port and GPS
  • Elapsed hour counter
  • Diesel engine with hydraulic transmission
  • Two single‑propelled, grooved capstan heads
  • Storage drum with 500 m rope

Housing and Chassis

  • Lockable, sound‑proofed ABS plastic housing
  • Hot‑dip galvanized base frame
  • Chassis with overrunning brake and automatic reverse function
  • Parking brake, supporting wheel and safety hitch
  • 12 V lighting system
  • TÜV approval according to German road traffic regulations, 100 km/h
  • Aluminium rims
  • Rear support legs, extendable and re‑tensionable
*The RKW 5010 (and KW 10) is supplied mounted on an 80 km/h trailer.

Measurements and weight attributes

Width (mm): 1850

Depth (mm): 5200

Height (mm): 1650

Weight (kg): 2600.0

Pull line diameter Ø (mm): 12

Pull line längd (m): 1250

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC002086

Tullstat. nr: 84253100

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min): 40

Pull force max (kp): 5000

Pull line (typ): Wire

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor: Dieselmotor

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP):
