Sahlins Sweden

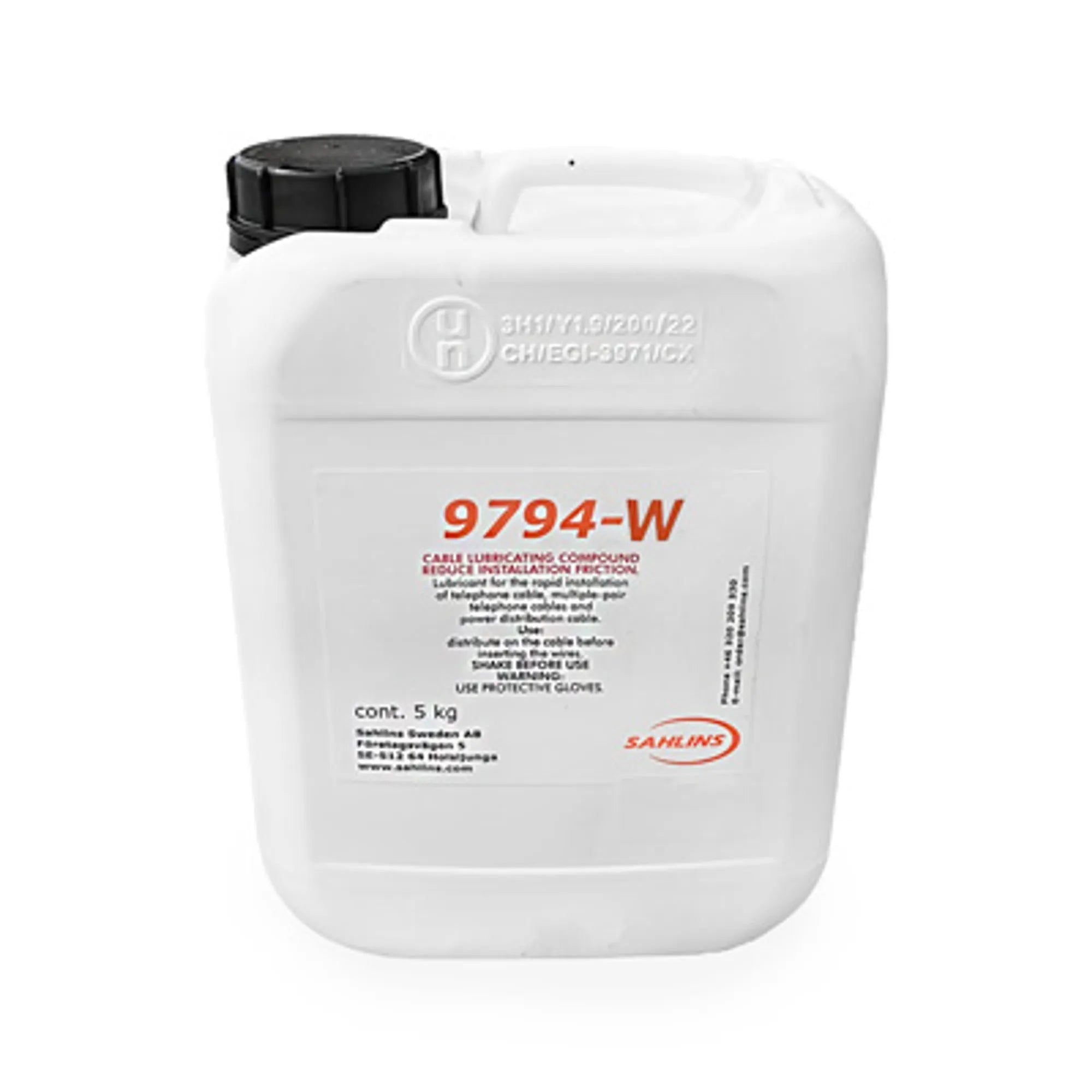

Cable Lube 9794 W

SKU: 9794-W01
E-number:
Vikt (kg)
Cable Lubricant 9794‑W is a water‑based lubricant developed for efficient installation of power and telecom cables in ducts and conduits. The product is applied using a sponge, ensuring controlled and even distribution along the cable surface during pulling or blowing operations.
When applied, the water content gradually evaporates, leaving a thin, uniform lubricating film on the cable sheath. This film reduces friction between cable and duct, minimizing pulling forces and helping to protect cable insulation against mechanical stress and abrasion. The lubricant is suitable for a wide range of cable types, including LV, MV, and fiber optic cables, and performs well in both short and long installation runs.
The controlled evaporation process ensures a clean installation environment with minimal residue while maintaining sufficient lubrication throughout the installation process.

Key Benefits:
– Sponge application for precise and controlled dosing
– Water‑based formula with clean evaporation
– Reduces friction and pulling forces effectively
– Leaves a consistent lubricating film on cable surface
– Suitable for power cables and fiber installations

Measurements and weight attributes

Width (mm):

Depth (mm):

Height (mm):

Weight (kg): 1.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC003587

Tullstat. nr: 3403 99 00

Working temperature range:

Density: 1.00g / cm³

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:  Vit

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor:

pH value: 7 (Neutral)

Reach in free air (m):

Stand (type):

Size:

Temperature range: -8°C / +50°C

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP): 4000
