Sahlins Sweden

Cable Roller STD Ø150

SKU: 6710-1000
E-number: 1653722

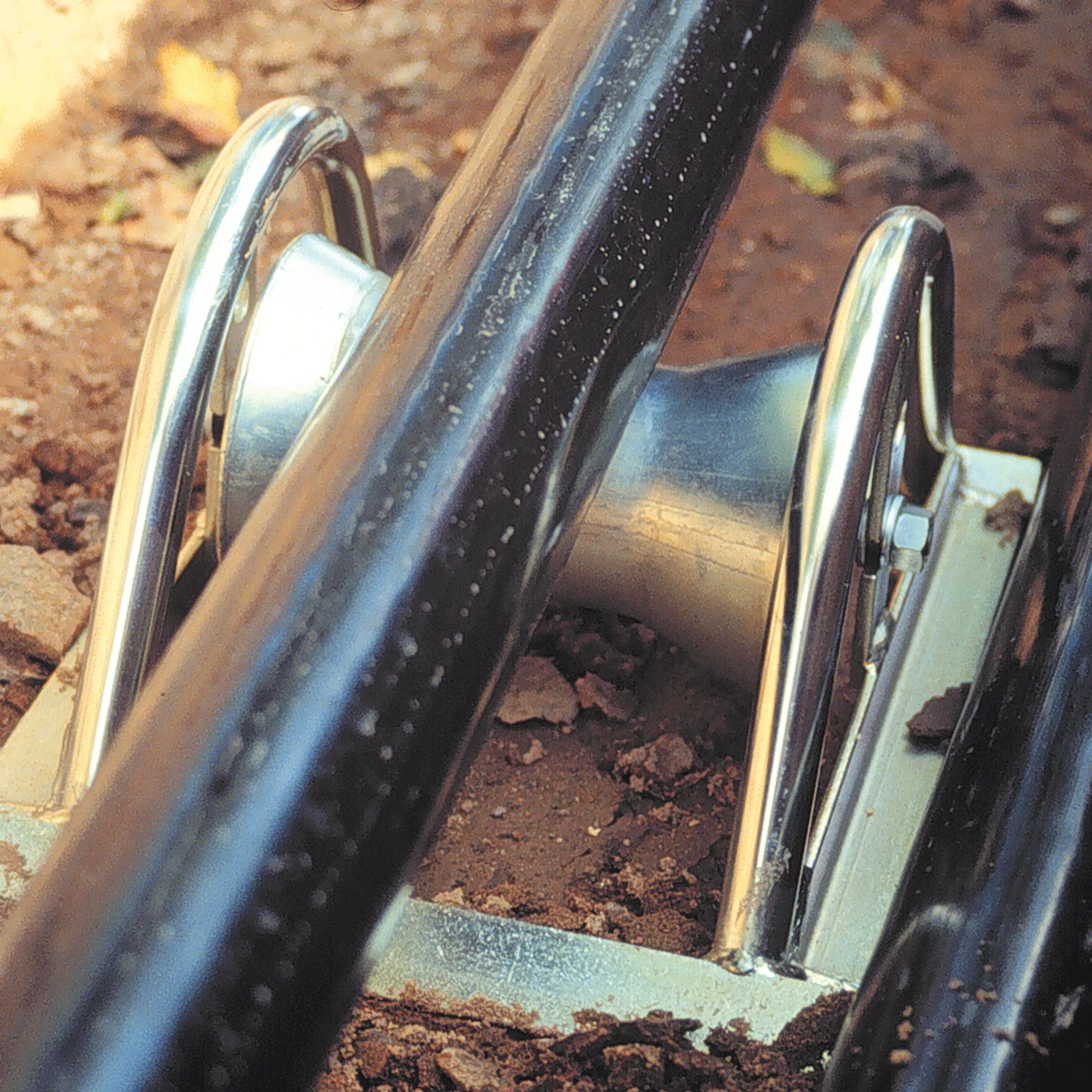

This cable roller is designed for efficient cable pulling and cable laying operations in trenches and on open ground. By supporting and guiding the cable during installation, the roller significantly reduces friction, lowers the required pulling force, and protects the cable from mechanical damage. It is suitable for general LV, MV and infrastructure cable installations where stable and reliable cable support is required.

The roller is a high‑quality standard model equipped with a ball‑bearing steel roller, ensuring smooth cable movement even under load. It is intended for installation of power cables with a maximum cable diameter of Ø 150 mm. The robust frame is manufactured from galvanized steel, providing excellent corrosion resistance and durability in harsh site conditions. The roller itself is also made of galvanized steel and mounted on sealed ball bearings for long service life and minimal maintenance.

Thanks to its stable design, the cable roller stands firmly on the ground during operation, ensuring secure cable guidance along straight runs or at trench entry and exit points. It is a practical and reliable accessory for professional cable installation crews.

Key Benefits
  • Reduces friction and required pulling force
  • Protects cable sheath during installation
  • Ball‑bearing steel roller for smooth cable movement
  • Galvanized steel frame and roller for long service life
  • Stable ground support for safe operation

Measurements and weight attributes

Width (mm): 265

Depth (mm): 345

Height (mm): 175

Weight (kg): 3.9

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm): 150

Max diameter Ø (mm):

Max load (kg): 200

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC000245

Tullstat. nr: 73269050

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material: Galvaniserat Stål

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP):
