Bagela

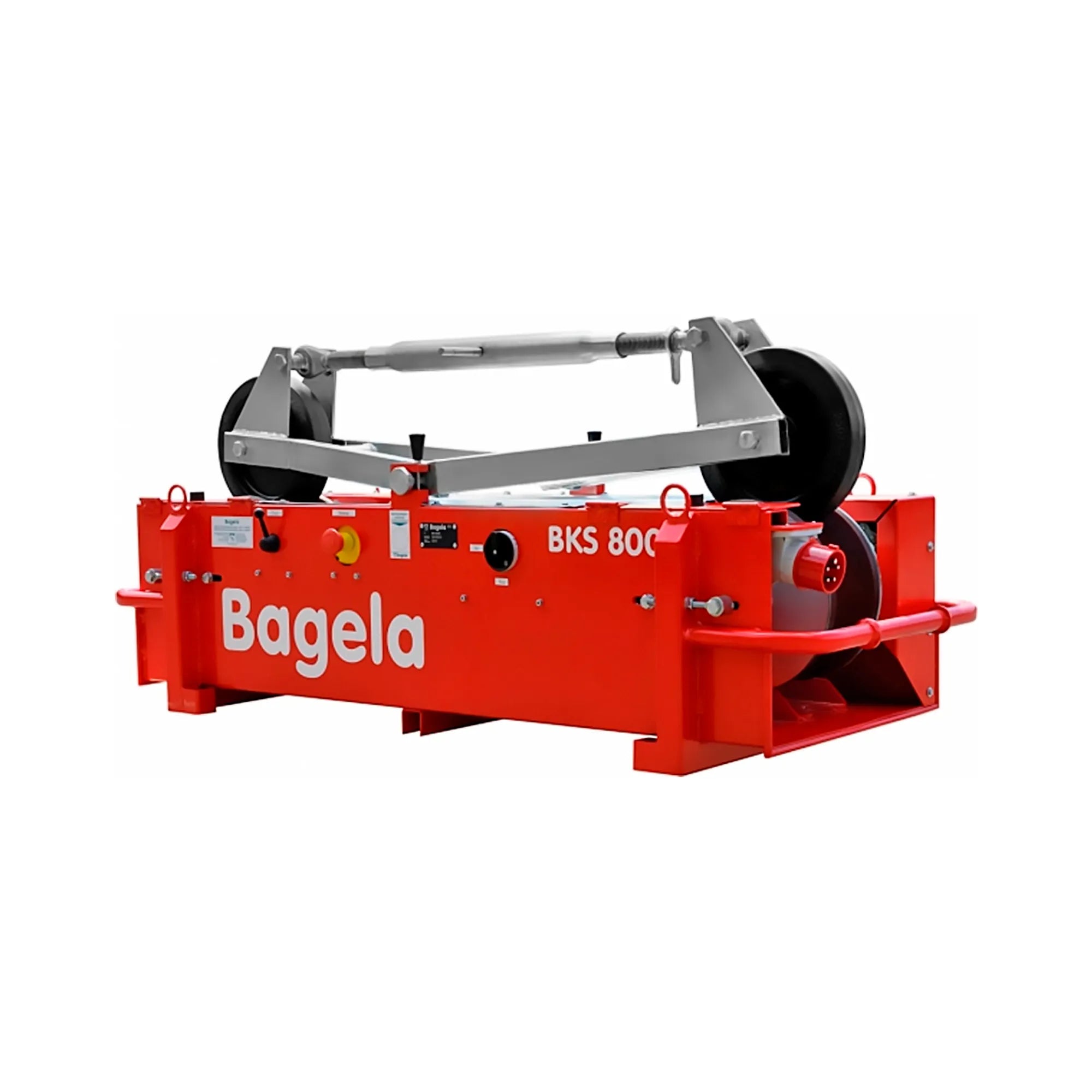

Cable Puscher BKS 800

SKU: B-012-002-00
E-number:
Motor
The Bagela Cable Pusher BKS 800 is designed to reduce tensile stress when installing power cables along long, complex routes such as bends, duct crossings, and narrow cable trenches. By actively feeding the cable at critical points, it enables significantly longer installation lengths without exceeding permissible pulling forces. This minimizes the need for intermediate joints, improving both installation efficiency and long-term cable reliability in LV, MV, and HV applications.
The system operates by guiding the cable through two pairs of tapered drive pulleys powered by an electric or hydraulic motor. Counter pulleys apply controlled pressure, ensuring optimal friction and consistent traction. The pulleys are manufactured from a highly elastic and wear-resistant rubber compound with a high friction coefficient, guaranteeing efficient power transmission without damaging the cable sheath. The adjustable pulley gap accommodates cable and duct diameters from 30 to 180 mm, including multiple single-core cables (e.g. three single 20 kV cables in one bundle).
Thanks to its compact and low-profile design (340 mm height), the BKS 800 prevents additional bending stress and can be installed directly in trenches, ducts, or pits. The press-on unit can be quickly removed after installation, allowing smooth cable handling. Multiple cable pushers can be operated in parallel via suitable power distribution systems, making the solution scalable for longer routes and higher pulling requirements.

Key Benefits:
– Reduces tensile stress and enables longer cable pulling distances
– Minimizes need for cable joints and associated excavation work
– Handles cables and ducts from 30–180 mm diameter
– Compact, low-profile design for use in confined spaces
– Electric or hydraulic drive options for flexible deployment

Measurements and weight attributes

Width (mm): 450

Depth (mm): 650

Height (mm): 1300

Weight (kg): 168.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 30

Cabler diameter max Ø (mm): 180

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class:

Tullstat. nr: 8479 89 97

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min): 10

Pull force max (kp): 800

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:  Röd

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor: Elmotor

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP):
