Sahlins Sweden

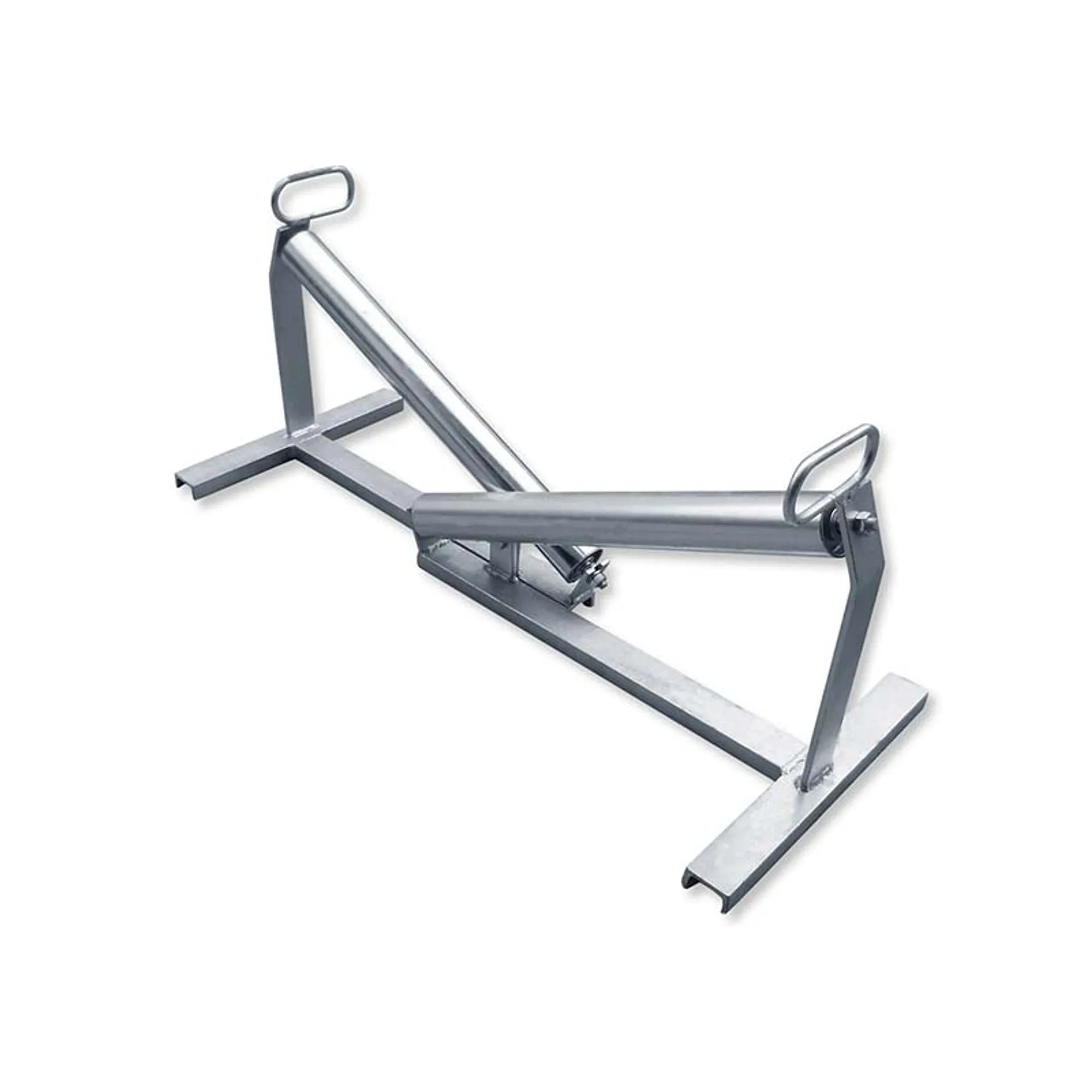

Cable Roller V-Guide Ø180

SKU: 6750-1001
E-number: 1655146
This V‑shaped cable guide is designed for cable pulling operations involving cables up to Ø180 mm and is primarily used as the first cable roller after the cable drum, where the cable exit position varies as the drum rotates. The guide captures the cable directly from the drum and aligns it with the correct pulling line towards the next cable roller. The V‑shaped geometry provides stable lateral guidance and controlled cable entry, which is particularly important when pulling heavy or stiff power cables. The cable guide can also be used for pulling pipes and hoses. The construction consists of a robust galvanized steel frame and two ball‑bearing mounted rollers made of galvanized steel, ensuring low friction, high wear resistance, and long service life in demanding installation environments. The guide is foldable for easy transport and compact storage on site.

Key benefits:
  • Ideal as the first cable guide after the cable drum
  • Designed for cables up to Ø180 mm diameter
  • Suitable for pulling pipes and hoses
  • Foldable design for easy transport and storage
  • Galvanized steel frame with ball‑bearing rollers for long service life

Measurements and weight attributes

Width (mm): 400

Depth (mm): 1000

Height (mm): 430

Weight (kg): 15.4

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm): 180

Max diameter Ø (mm):

Max load (kg): 250

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC000245

Tullstat. nr: 73269050

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans:

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt:

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material: Galvaniserat Stål

Motor:

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min):

Viskositet (cP):
