Sahlins Sweden
Cable Guide Pipe
SKU:
6752-708-0

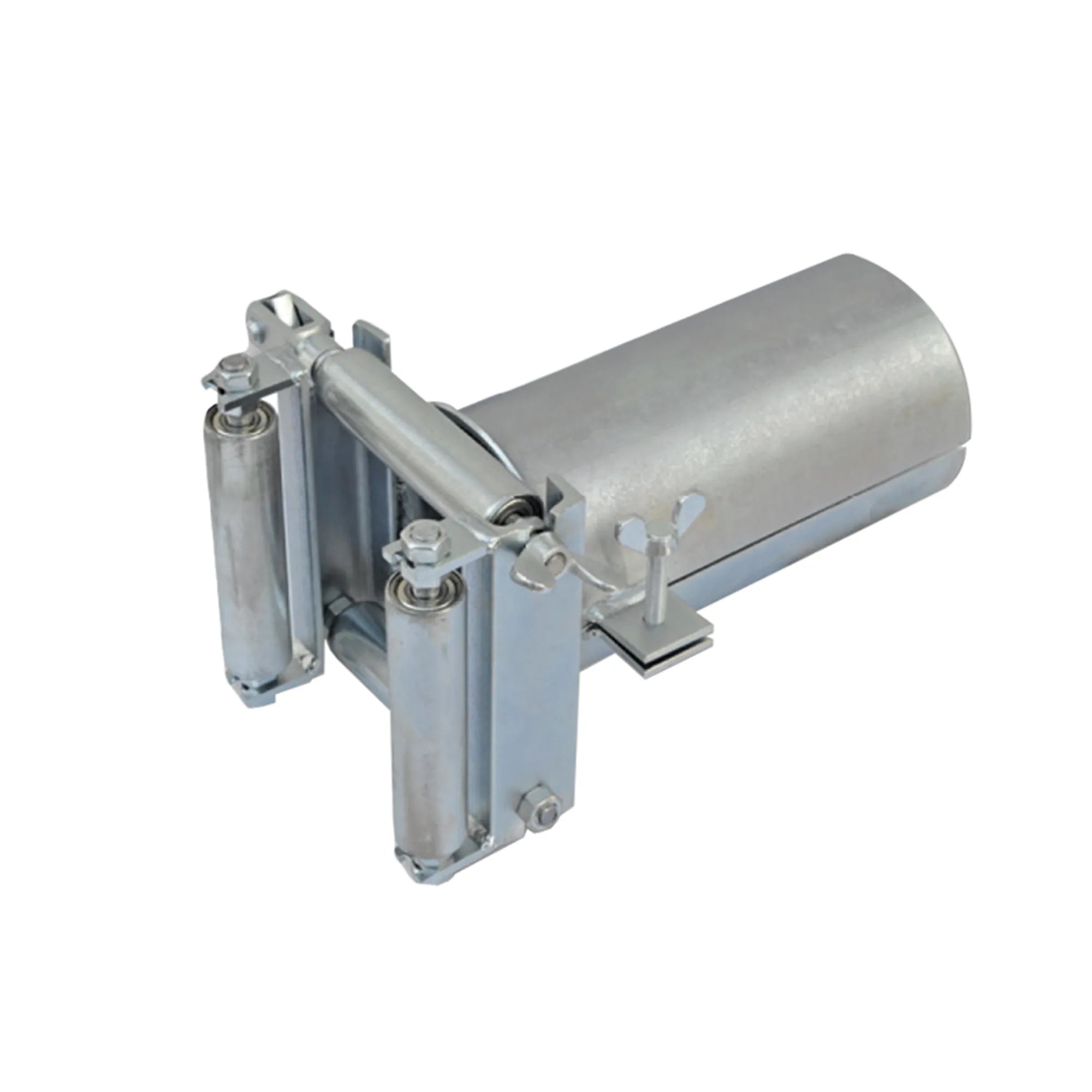

This four‑roller cable guiding unit is used during cable pulling operations through ducts and conduits where the cable may enter from varying directions. The four‑roller design surrounds the cable, ensuring controlled guidance and effective protection of the cable sheath during insertion into the duct. The unit is manufactured from galvanized steel to provide high mechanical strength and long service life in demanding installation environments. The ball‑bearing mounted steel rollers ensure low friction and smooth cable movement, even when pulling heavier power cables. The adjustable diameter of the duct‑inserted section allows precise and secure installation. The frame construction minimizes the risk of point loading, abrasion, and sheath damage and is particularly suitable where straight‑line cable feeding is not possible.
Key benefits:
- Four‑roller frame guides and protects the cable regardless of entry angle
- Ball‑bearing steel rollers for low friction and smooth cable feeding
- Adjustable diameter to suit multiple duct sizes
- Robust galvanized steel construction
- Reduces the risk of cable sheath damage during demanding cable pulling
| Art nr | E-number | Tube diameter max internal (mm) | Cable diameter max (mm) | Kabeldiameter max (mm) |
|---|---|---|---|---|
| 6752-708-0 | 1655156 | 61 | 51 | 43 |
| 6752-708-1 | 1655157 | 86 | 76 | 68 |
| 6752-708-2 | 1655158 | 99 | 89 | 81 |
| 6752-708-3 | 1655159 | 124 | 114 | 104 |
| 6752-708-4 | 1655160 | 143 | 133 | 123 |
| 6752-708-5 | 1655161 | 151 | 140 | 130 |
| 6752-708-6 | 1655162 | 162 | 152 | 142 |
| 6752-708-7 | 1655163 | 178 | 168 | 156 |
| 6752-708-8 | 1655164 | 204 | 194 | 182 |
Product attributes
ETIM-class: EC000245
Customs. no: 73269050
Working temp range:
Density:
Diameter (mm):
Distanse:
Pull speed max (m/min):
Pull force max (kp):
Pull line (typ):
Drive source:
Duct:
Flow max (l/min):
Frequency (kHz):
Color:
Thread:
Grade:
Force (kN):
Sound level dB (A):
Air flow (l/min):
Air pressure:
Material: Galvaniserat Stål
Motor:
pH-value:
Reach free air (m):
Stand (type):
Size:
Temperature range:
Stretch %:
Drum break:
Pressure max (bar):
Pressure speed max (m/min):
Viskosity (cP):
