Kabelguide 4 Rullar< Ø175 mm

SKU: 6752-3190
E-number:
Cable guiding frame designed to support and guide cables during installation into cable ducts and conduits. The four-roller arrangement surrounds the cable path and provides controlled guidance during pulling, helping to keep the cable correctly aligned at the duct or conduit entrance. The frame is suitable for cables with an outside diameter of up to 175 mm.

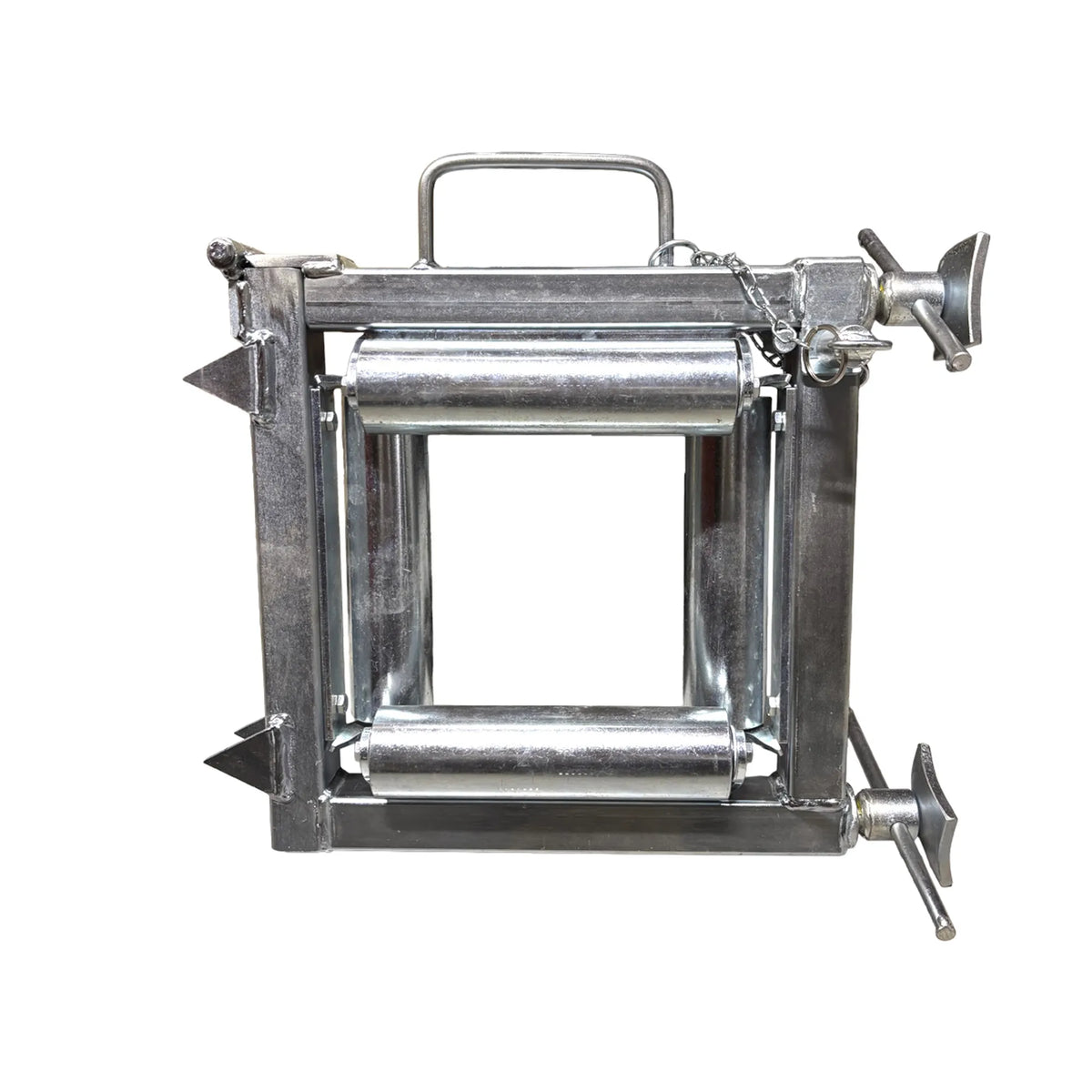

The frame is manufactured from galvanized steel and has an openable upper section to facilitate cable insertion. Two adjustable support plates with screw adjustment allow the frame to be positioned and secured at the installation point. A positioning handle assists with setup and adjustment.

The cable runs on four galvanized steel rollers mounted on shielded ball bearings, providing low-resistance rotation during pulling operations. The unit has a rated load of 150 daN, weighs approximately 21 kg, and has overall dimensions of approximately 520 × 470 × 60/165 mm. The rollers are approximately Ø60 × 238 mm. According to the drawing, the adjustable installation arrangement extends up to approximately 630 mm.

Key Benefits:
  • Guides cables up to Ø175 mm
  • Four galvanized steel rollers with shielded ball bearings
  • Adjustable support plates for positioning at the conduit entrance
  • Openable upper frame for easier cable insertion
  • Robust galvanized steel construction with 150 daN rated load
