Sahlins Sweden
Cable Angle Guide Pipe
SKU:
6751-1108

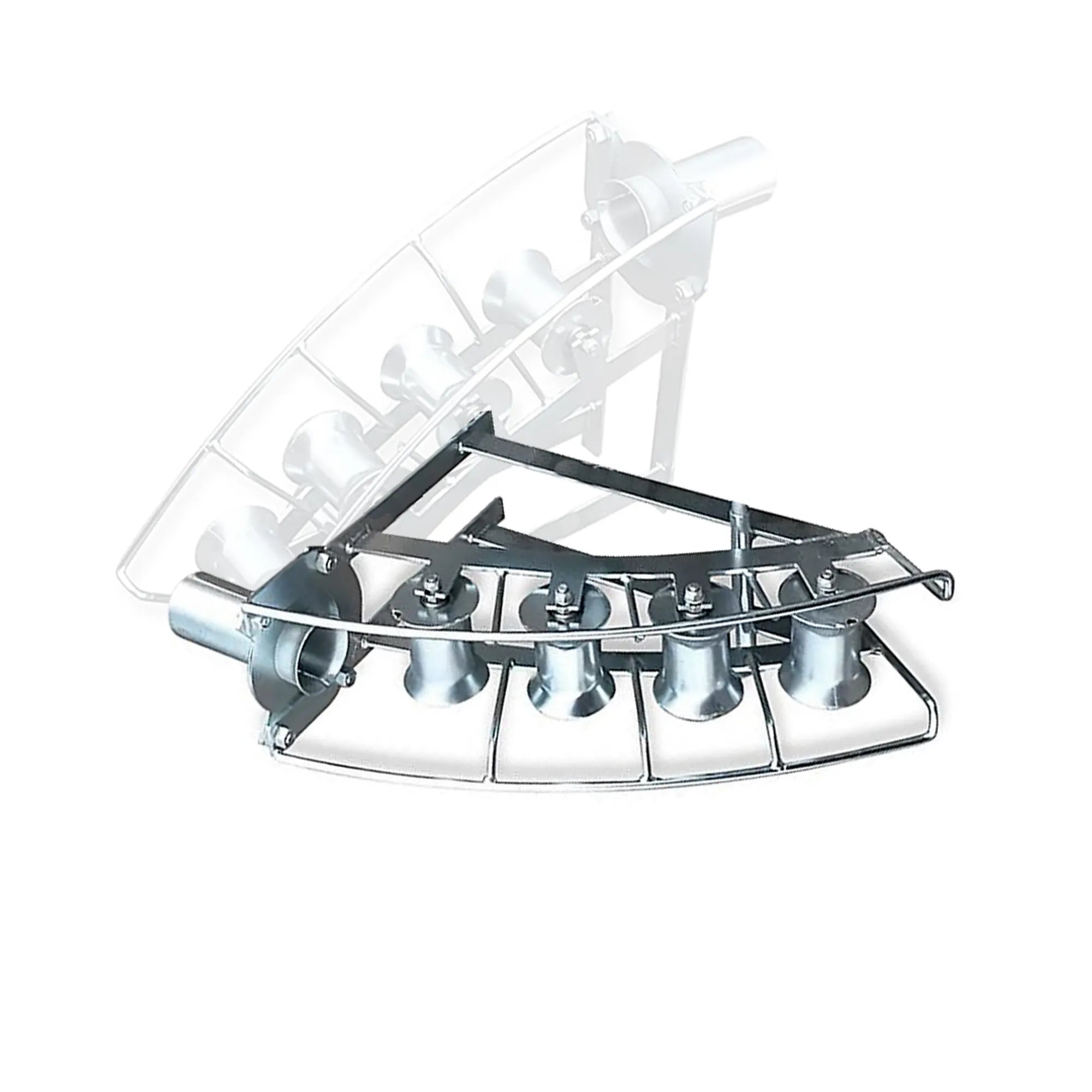

This cable guide and insertion device is designed to guide and protect power cables during cable pulling operations, especially at angles before or after duct entry. By controlling the cable path and maintaining a defined bending radius, the device reduces mechanical stress on the cable sheath and conductors, ensuring safe and efficient installation.
The guide is built with a fixed bending radius of 1000 mm, making it suitable for medium and large power cables where minimum bending radius requirements must be respected. It is equipped with four galvanized steel roller bodies, arranged to provide smooth cable guidance through directional changes while minimizing friction and surface wear.
The robust frame and roller construction are fully galvanized, providing excellent corrosion resistance and long service life in trench, ground, and outdoor installation environments. The device is typically used in combination with cable rollers and winches to ensure controlled cable entry into ducts and conduits.
Key Benefits:
- Guides and protects the cable at directional changes
- Designed for use before or after duct entry
- Fixed bending radius of 1000 mm for safe cable handling
- Four galvanized steel rollers for low friction and durability
- Robust galvanized steel construction for outdoor use
| Art nr | E-number | Tube diameter max internal (mm) | Cable diameter max (mm) | Kabeldiameter max (mm) |
|---|---|---|---|---|
| 6751-1108 | — | 80 | — | 70 |
| 6751-1110 | — | 100 | — | 90 |
| 6751-1112 | — | 120 | — | 105 |
| 6751-1115 | — | 150 | — | 130 |
Product attributes
ETIM-class: EC000245
Customs. no: 73269050
Working temp range:
Density:
Diameter (mm):
Distanse:
Pull speed max (m/min):
Pull force max (kp):
Pull line (typ):
Drive source:
Duct:
Flow max (l/min):
Frequency (kHz):
Color:
Thread:
Grade:
Force (kN):
Sound level dB (A):
Air flow (l/min):
Air pressure:
Material: Galvaniserat Stål
Motor:
pH-value:
Reach free air (m):
Stand (type):
Size:
Temperature range:
Stretch %:
Drum break:
Pressure max (bar):
Pressure speed max (m/min):
Viskosity (cP):
