Sahlins Sweden

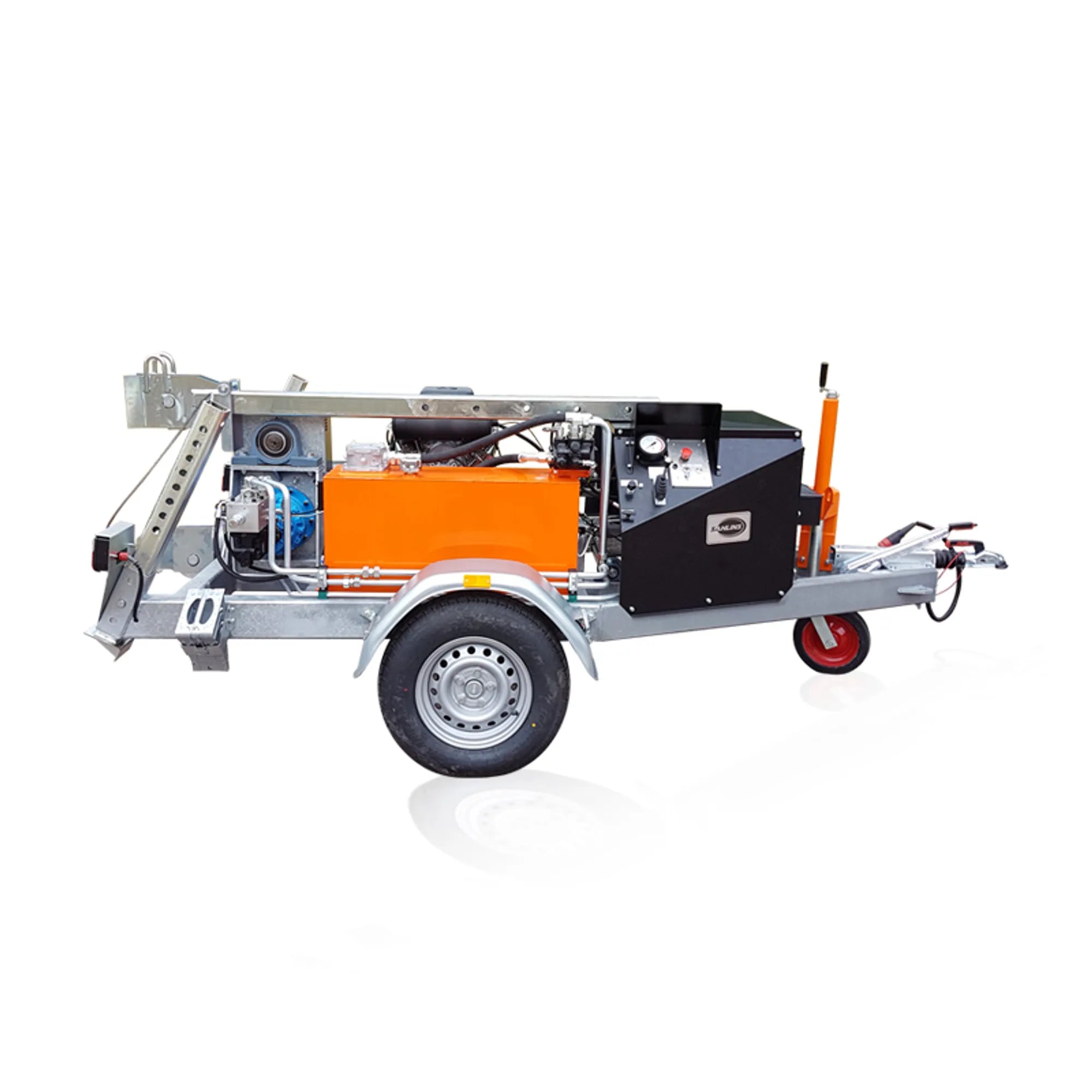

Cable Winch 3400 P 4T

SKU: 3400-0001
E-number:
Model 3400 is a heavy‑duty hydraulic cable winch for underground power cable installation with a maximum pulling force of 4 tons (4,000 kp). It is the largest model in the winch series and is designed for controlled installation of LV, MV, and HV power cables in trenches and ducts where very high pulling capacity, precise force control, and operational safety are essential. The winch is trailer‑mounted and intended for demanding applications within utility, infrastructure, and civil engineering projects.

The winch is built with a dual capstan wheel design, ensuring constant access to full pulling force throughout the entire operation, regardless of rope wrap. This construction provides stable, predictable, and safe pulling performance even under extreme loads. The steel wire drum is equipped with an automatic level winder to ensure even spooling and reduced wear on the wire. The robust chassis features a sprung axle, overrun brake, hand brake, adjustable support legs, and jockey wheel, enabling safe transport, stable positioning, and efficient handling on site. As standard, Model 3400 is supplied with Ø10 mm × 1,050 m steel wire, protective cover (tarpaulin), and a drawbar pre‑mounted in transport brackets.

The hydraulic system incorporates a variable displacement pump, allowing stepless adjustment of both pulling force and pulling speed. This enables precise adaptation to cable type, duct conditions, and installation requirements. The operator control panel provides straightforward control of in/out direction, speed, and engine throttle. The pressure gauge also allows the operator to set a maximum allowable pulling force using a red pointer, offering effective protection for sensitive power cables.

For documentation and quality assurance, an optional logging unit is available for Model 3400. The unit records pulling force, speed, and installed length, and the log can be saved and exported to an external drive after completion of the work. As standard, the winch is equipped with a non‑rotating pulling eye. Ball‑bearing swivels may cause the wire or cable to twist and suffer damage; if rotation is required, a friction swivel is recommended, which rotates stepwise based on torsional load in the cable, minimizing stress and wear.

Key Benefits:
  • 4‑ton pulling force with dual capstan wheels for constant maximum traction
  • Stepless control of pulling force and speed via variable hydraulic pump
  • Automatic level winder for even wire spooling and reduced wear
  • Trailer‑mounted chassis with brakes, support legs, and jockey wheel
  • Optional logging unit for documentation of force, speed, and length

Measurements and weight attributes

Width (mm): 1835

Depth (mm): 3570

Height (mm): 1350

Weight (kg): 1575.0

Pull line diameter Ø (mm): 10

Pull line längd (m): 1050

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC002086

Tullstat. nr: 84253100

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans:

Draghastighet max (m/min): 20

Dragkraft max (kp): 4000

Draglina (typ): Wire

Drivkälla:

Dukt:

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor: Bensinmotor

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min):

Viskositet (cP):
