Double Overhead Roller Inner Angles

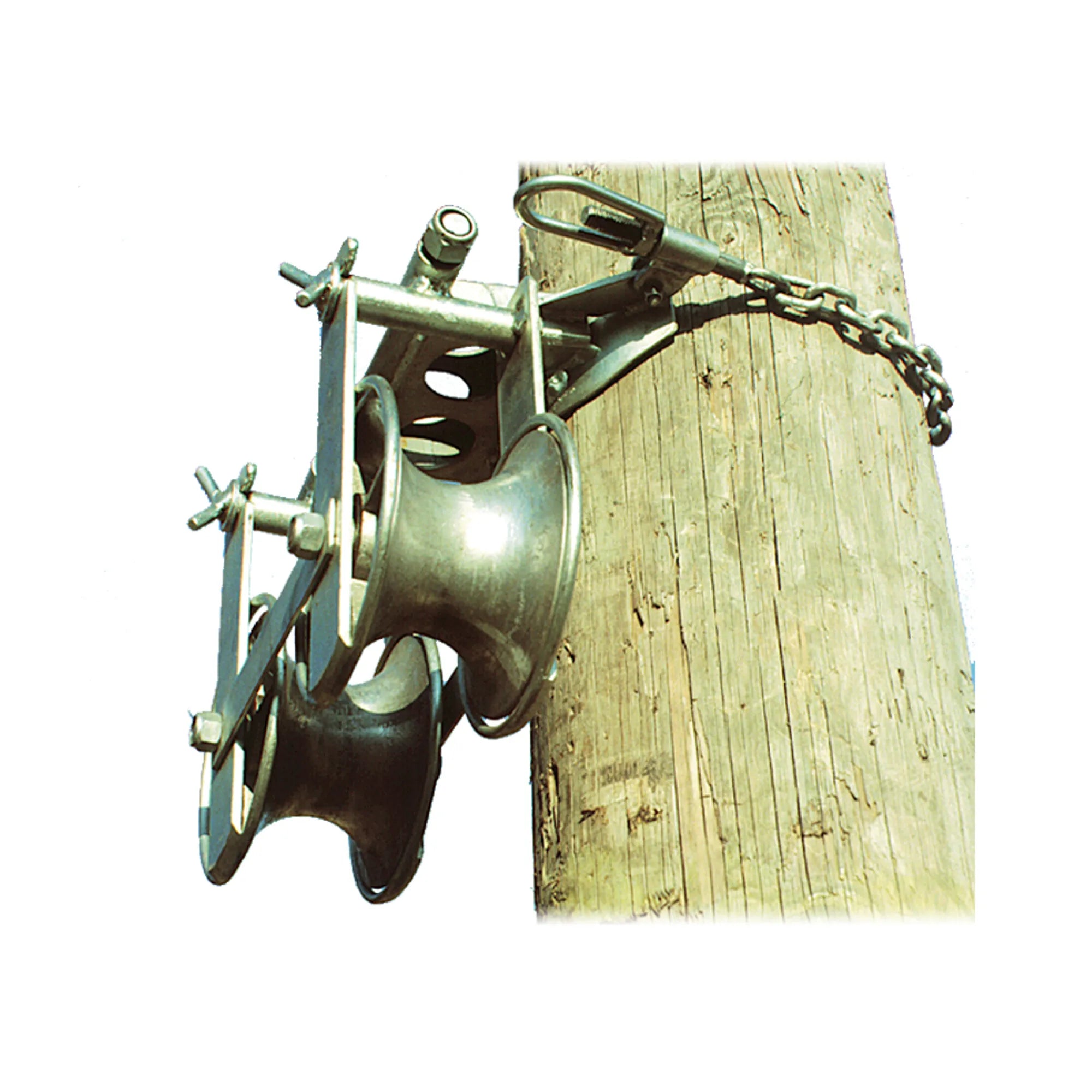

Double Hanging Cable Roller – for large internal angles
The Double Hanging Cable Roller is designed for controlled and cable‑safe guidance in installations with large internal angles where suspended routing is required. It is typically used on cable ladders, overhead installations, trench edges, and other applications where a single roller does not provide sufficient support or stability.
The unit features two ball‑bearing aluminium rollers that ensure low friction and smooth cable movement, even under higher pulling forces. The double‑roller configuration provides correct cable support through the angle, reduces point loading, and minimizes the risk of sheath or conductor damage. The aluminium rollers offer an optimal balance of low weight and high wear resistance, suitable for both temporary and permanent installation environments.
The Double Hanging Cable Roller is intended for professional installation of LV, MV, and selected HV cables and can be combined with straight and corner rollers to form a complete cable routing system.
Key Benefits:
– Double roller design for large internal angles
– Ball‑bearing aluminium rollers for low friction
– Smooth and controlled cable guidance
– Reduced stress on cable sheath
– Suitable for suspended cable installations
Measurements and weight attributes
Width (mm):
Depth (mm):
Height (mm):
Weight (kg): 8.0
Pull line diameter Ø (mm):
Pull line längd (m):
Break point (kg):
Break load (kg):
Grip length (mm):
Cable area max (mm2):
Cable diameter min Ø (mm):
Cabler diameter max Ø (mm): 76
Max diameter Ø (mm):
Max load (kg): 750
Stored measurement (mm):
Drum diameter min internal Ø (mm):
Drum diameter max internal Ø (mm):
Drum diameter max external Ø (mm):
Service weight (kg):
Drum width max (mm):
Drum diameter min Ø (mm):
Drum diameter max Ø (mm):
Drum center hole min (mm):
Drum center hole max (mm):
Drum size Ø:
Total weight (kg):
Total length (mm):
Pressure max (kg):
Outer diameter ring max Ø (mm):
Product attributes
ETIM-class: EC000322
Tullstat. nr: 84283990
