Fall Safe

Fall Arrest Block 7.5 M

SKU: 7105-1050
E-number:

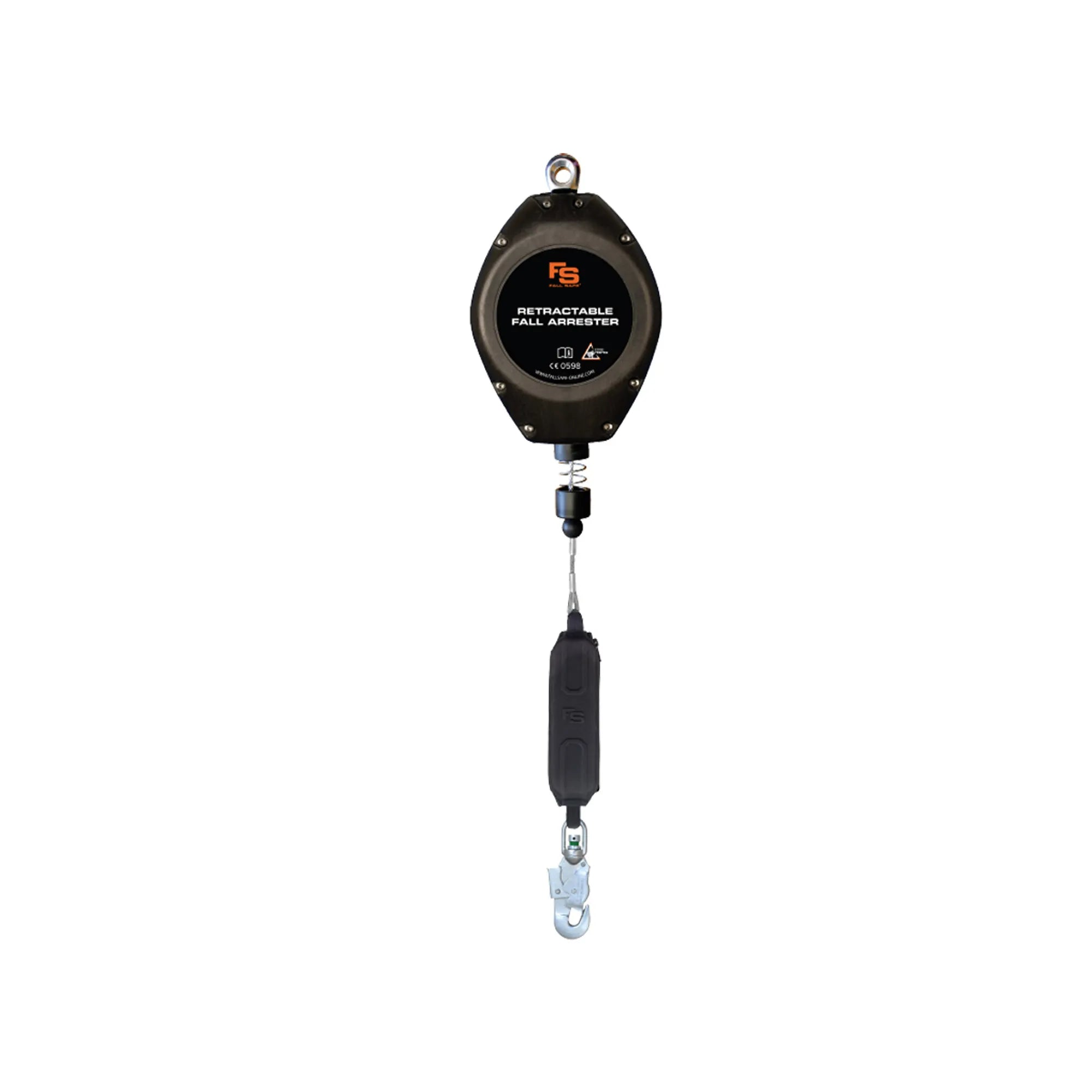

Professional Fall Arrest Block Sharp Edge 7.5 m (FS933E) is a retractable fall-arrest device designed for work at height where reliable personal fall protection is required. The unit features a 7.5 m galvanized steel cable and is suitable for construction sites, industrial maintenance, utility work, and infrastructure projects where users need freedom of movement combined with continuous fall protection.
The fall arrest block is built with a robust housing made from PA6 reinforced with glass fiber and an internal chassis manufactured from stainless steel and carbon steel for high durability and impact resistance. The 4.8 mm galvanized steel cable offers excellent wear resistance, while the integrated energy absorber reduces fall forces transmitted to the user during an arrest event.
The FS933E model is tested and approved for sharp-edge applications and complies with EN 360:2023. The steel connector incorporates a fall indicator for easy visual inspection after a fall event. An optimized internal braking mechanism minimizes unwanted locking during normal movement, improving user mobility and productivity. The device is approved for one user with a maximum rated load of 140 kg and requires annual inspection.

Key Benefits
  • 7.5 m retractable galvanized steel cable
  • Sharp-edge tested for demanding work environments
  • Integrated energy absorber and fall indicator
  • Durable stainless steel and carbon steel internal construction
  • Certified according to EN 360:2023

Measurements and weight attributes

Width (mm):

Depth (mm):

Height (mm):

Weight (kg): 3.6

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg): 140

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Product attributes

ETIM-class: EC012041

Tullstat. nr: 84798997

Working temperature range:

Density:

Diameter (mm):

Distanse:

Pull speed max (m/min):

Pull force max (kp):

Pull line (typ):

Drive source:

Duct:

Flow max (l/min):

Frequency (kHz):

Color:  Svart

Thread:

Grading:

Force (kN):

Sound level dB (A):

Air flow (l/min):

Air pressure:

Material:

Motor:

pH value:

Reach in free air (m):

Stand (type):

Size:

Temperature range:

Elongation%:

Drum break:

Pressure max (bar):

Pressure speed max (m/min):

Viscosity (cP):
