Fremco

Easyflow Smart

SKU: 101-211129001
E-number:

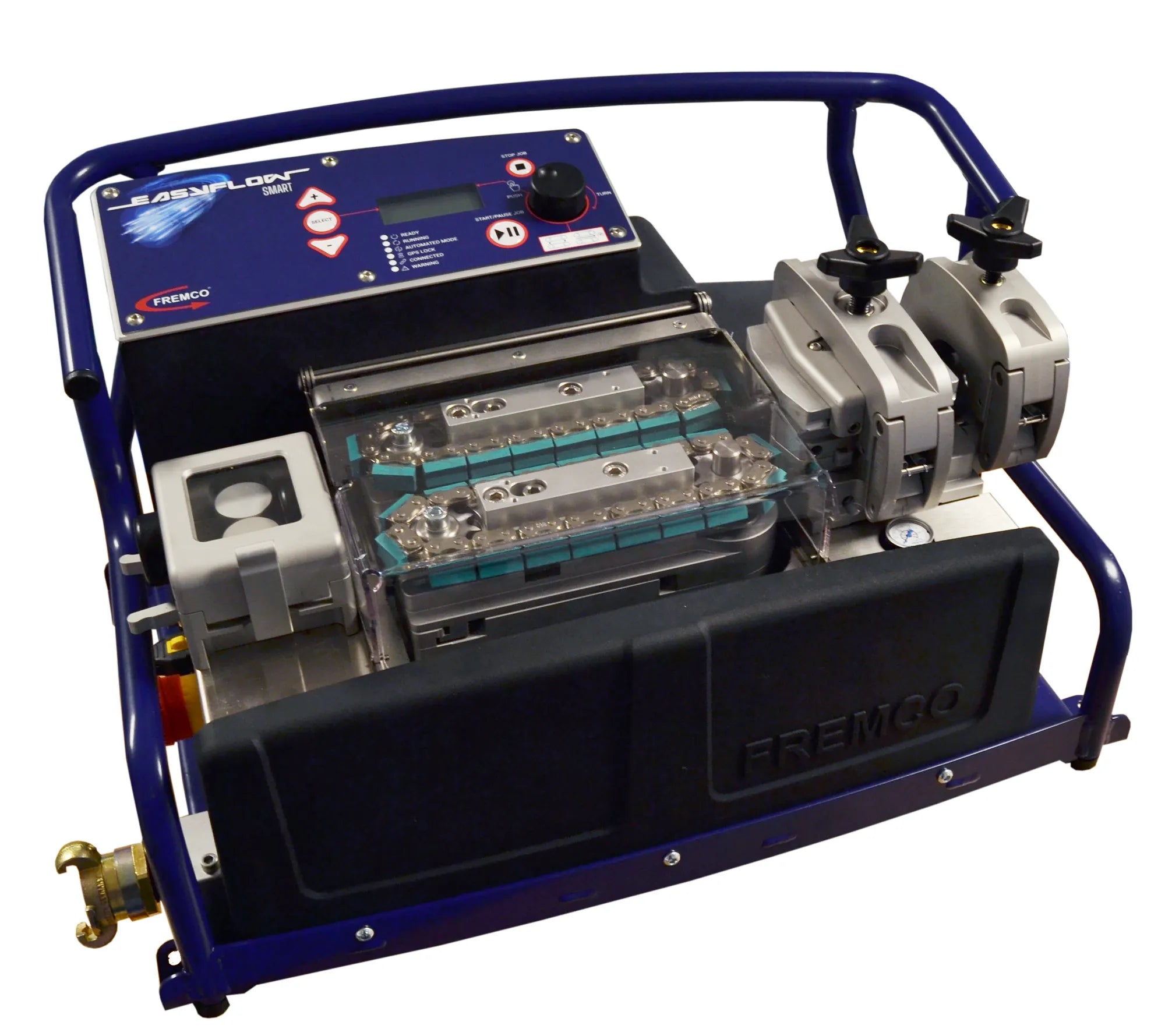

Automatic Fiber Blowing Machine for 4–8 mm Micro‑Cables
This fully automatic fiber blowing machine is designed to ensure reliable and repeatable installation of optical fiber cables in ducts and microduct systems. Intended for cable diameters from 4 to 8 mm, the machine provides controlled, consistent blowing performance for both short and long-distance installations. It is suitable for FTTx networks, access networks, and backbone fiber installations where precision and cable protection are critical.
The machine combines pneumatic blowing with motor-driven cable feed, allowing accurate control of speed and pushing force. Automatic regulation of air pressure and feed rate minimizes the risk of fiber damage and ensures stable performance even in varying duct conditions. The cable drive system is optimized for small-diameter fiber cables, providing sufficient traction without deforming or stressing the cable sheath. A compact and robust construction makes the unit suitable for on-site use in outdoor and indoor environments.
Designed for professional fiber installation crews, the machine supports efficient setup and repeatable results. Safety features such as enclosed drive wheels and emergency stop functions contribute to safe operation, while wear-resistant components ensure long service life under demanding field conditions.

Key Benefits:
– Fully automatic operation for consistent fiber blowing performance
– Designed for optical fiber cables with diameters from 4 to 8 mm
– Controlled feed force and air pressure to protect sensitive fiber cables
– Suitable for microduct and small-duct installations
– Robust, compact design for professional field use

Measurements and weight attributes

Width (mm): 621

Depth (mm): 340

Height (mm): 400

Weight (kg): 44.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm): 4

Cabler diameter max Ø (mm): 8

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg): 30.0

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC000536

Tullstat. nr: 84798997

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans: 2500

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt: 8-20

Flöde max (l/min):  12000

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor:

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar): 16

Tryckhastighet max (m/min): 64.0

Viskositet (cP):
