308-149
308-149
Atlas Copco

Borrmaskin Cobra Combi

SKU: 308-149
E-number:

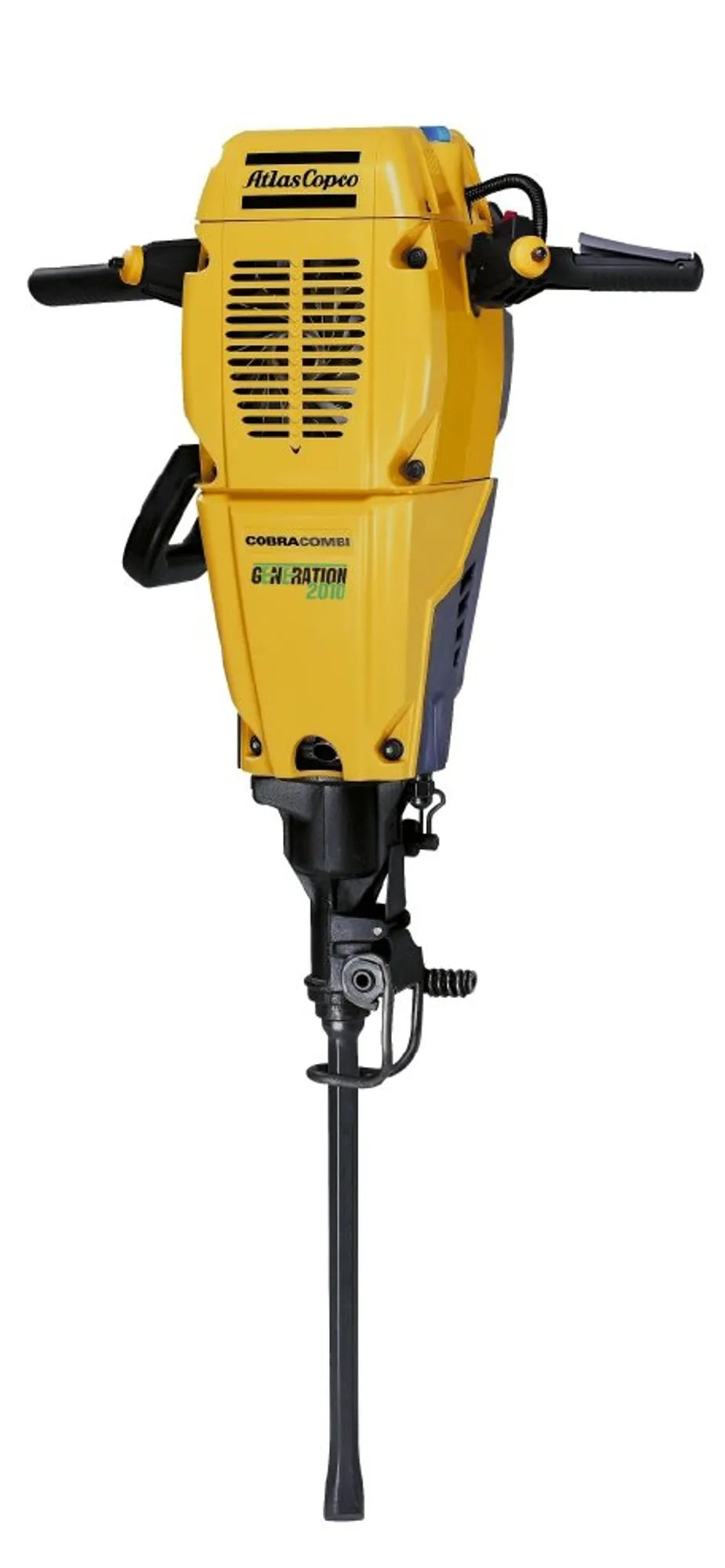

The Atlas Copco Cobra Combi is a powerful petrol‑driven rock drill that combines drilling and breaking functions in one compact machine. It is designed for field operations where access to electricity or compressed air is unavailable, making it well suited for rescue services, construction and civil engineering contractors, geotechnical work, railway maintenance, and other demanding environments.
The Cobra Combi features a 22 × 108 mm chuck system, allowing compatibility with a wide range of drills and chisels, including asphalt chisels, pointed chisels, flat chisels, and wedge tools. The air‑cooled two‑stroke petrol engine provides high output with a minimal number of components, resulting in reliable operation and simplified maintenance under harsh site conditions.
An advanced flushing system enables drilling up to six metres in solid granite, improving drilling efficiency and ensuring clean, precise holes in hard materials. To reduce operator strain, the Cobra Combi is equipped with Atlas Copco’s HAPS (Hand Arm Protection System), where vibrations are effectively isolated from the handles using springs, rubber mountings, and other damping solutions. This significantly reduces exposure to hand‑arm vibrations during prolonged use.

Key benefits:
  • Combines drilling and breaking in one petrol‑driven unit
  • Fully independent of power supply and compressors
  • 22 × 108 mm chuck system with wide tool compatibility
  • Efficient flushing system for deep drilling in hard rock
  • HAPS vibration damping system for improved operator comfort

Measurements and weight attributes

Width (mm):

Depth (mm): 281

Height (mm): 732

Weight (kg): 25.0

Pull line diameter Ø (mm):

Pull line längd (m):

Break point (kg):

Break load (kg):

Grip length (mm):

Cable area max (mm2):

Cable diameter min Ø (mm):

Cabler diameter max Ø (mm):

Max diameter Ø (mm):

Max load (kg):

Stored measurement (mm):

Drum diameter min internal Ø (mm):

Drum diameter max internal Ø (mm):

Drum diameter max external Ø (mm):

Service weight (kg):

Drum width max (mm):

Drum diameter min Ø (mm):

Drum diameter max Ø (mm):

Drum center hole min (mm):

Drum center hole max (mm):

Drum size Ø:

Total weight (kg):

Total length (mm):

Pressure max (kg):

Outer diameter ring max Ø (mm):

Produktegenskaper

ETIM-klass: EC002899

Tullstat. nr: 8467 29 20

Arbetstemperaturområde:

Densitet:

Diameter (mm):

Distans:

Draghastighet max (m/min):

Dragkraft max (kp):

Draglina (typ):

Drivkälla:

Dukt:

Flöde max (l/min):

Frekvens (kHz):

Färg:

Gänga:

Gradering:

Kraft (kN):

Ljudnivå dB (A):

Luftflöde (l/min):

Lufttryck:

Material:

Motor:

pH-värde:

Räckvidd fri luft (m):

Stativ (typ):

Storlek:

Temperaturområde:

Töjning %:

Trumbroms:

Tryck max (bar):

Tryckhastighet max (m/min):

Viskositet (cP):
